LTL-533-11
Features
- Designed for ease in circuit board assembly.
- Black case enhance contrast ratio.
- Solid state light source.
- Reliable and rugged.
Package Dimensions
Lamp Part No. LTL-10233WP
Lens Green Diffused
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. The holder color is black. 4. The holder raw material is PC. 5. The LED lamp is LTL-10233WP.
Part No. : LTL-533-11 BNS-OD-C131/A4
Source Color Green
Page : 1 of 6
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

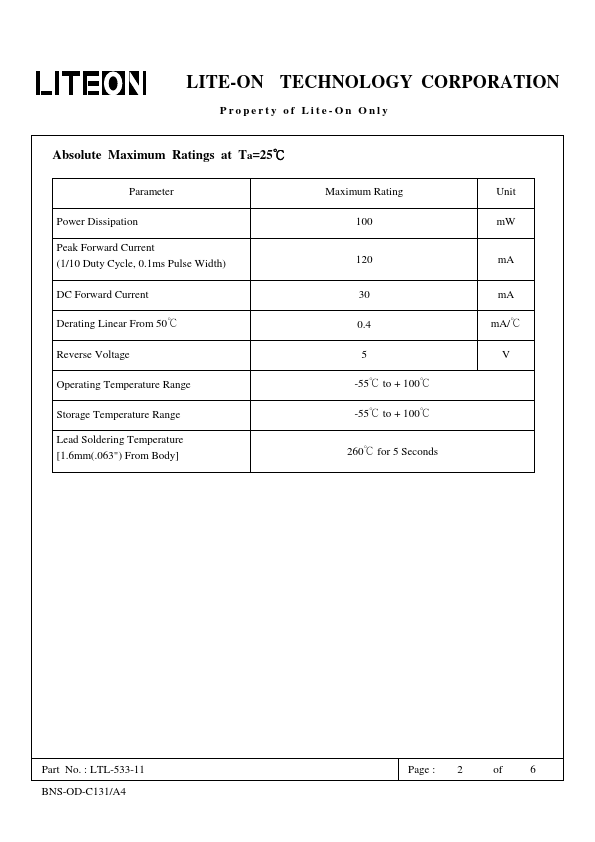

Absolute Maximum Ratings at Ta=25℃
Parameter Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) DC Forward Current Derating Linear From 50℃ Reverse Voltage Operating Temperature Range Storage Temperature Range Lead Soldering Temperature [1.6mm(.063") From Body]
Maximum Rating 100
120 30 0.4 5 -55℃ to + 100℃ -55℃ to + 100℃ 260℃ for 5 Seconds
Unit m W m A m A m A/℃ V
Part No. : LTL-533-11 BNS-OD-C131/A4
Page : 2 of...
