LTL-R14FGSAJ - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-R14FGSAJ Datasheet Preview — Preview of LTL-R14FGSAJ PDF

Datasheet Details

Part number	LTL-R14FGSAJ
Manufacturer	LITEON
File Size	370.67 KB
Description	Through Hole Lamp
Datasheet	LTL-R14FGSAJ-LITEON.pdf

LTL-R14FGSAJ Product details

Description

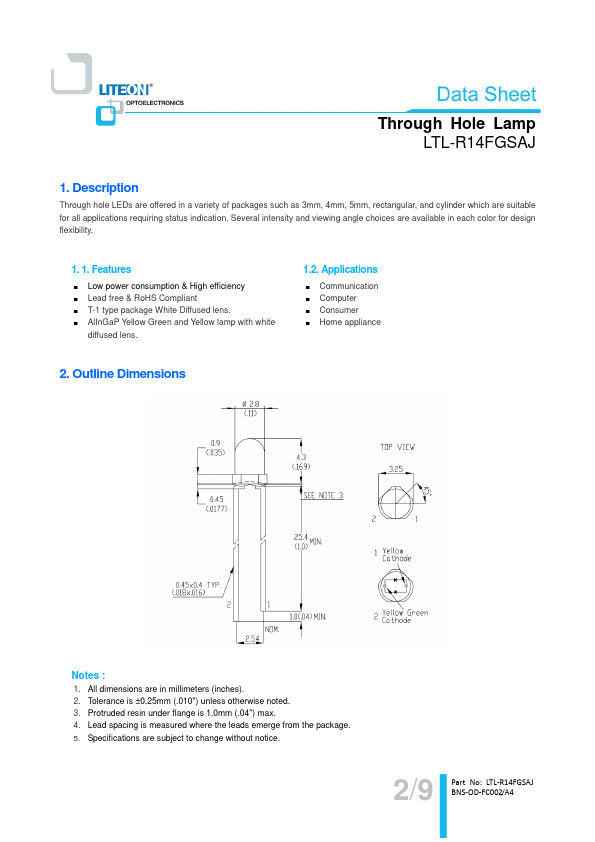

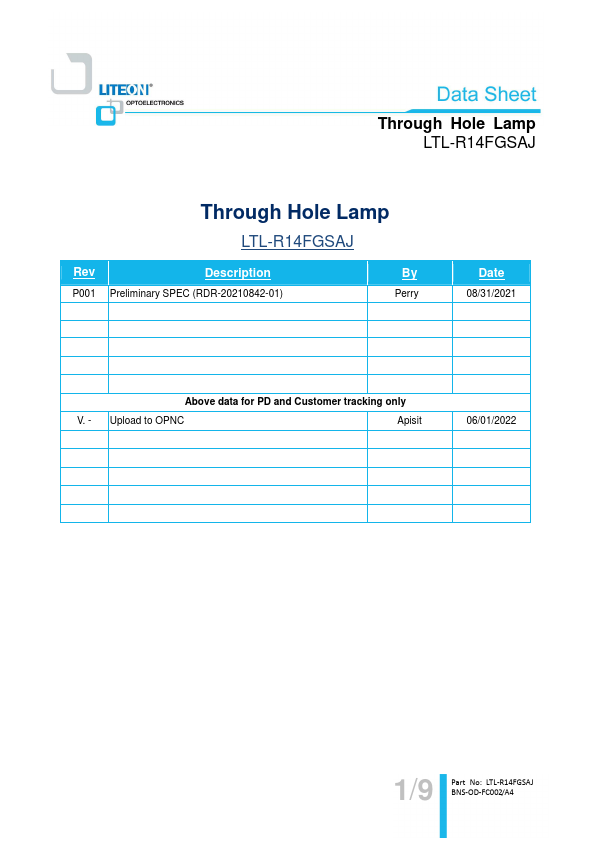

P001 Preliminary SPEC (RDR-20210842-01) By Perry Date 08/31/2021 Above data for PD and Customer tracking only V.- Upload to OPNC Apisit 06/01/2022 1/9 Part No: LTL-R14FGSAJ BNS-OD-FC002/A4 Through Hole Lamp LTL-R14FGSAJ 1. Description Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication.Several intensity and viewing angle choices are available in each color for desi

Features

Low power consumption & High efficiency.
Lead free & RoHS Compliant.
T-1 type package White Diffused lens.
AlInGaP Yellow Green and Yellow lamp with white diffused lens. 1.2.
