LTL-R14FM01H291T - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-R14FM01H291T Datasheet Preview — Preview of LTL-R14FM01H291T PDF

Datasheet Details

Part number	LTL-R14FM01H291T
Manufacturer	LITEON
File Size	482.72 KB
Description	Through Hole Lamp
Datasheet	LTL-R14FM01H291T-LITEON.pdf

LTL-R14FM01H291T Product details

Description

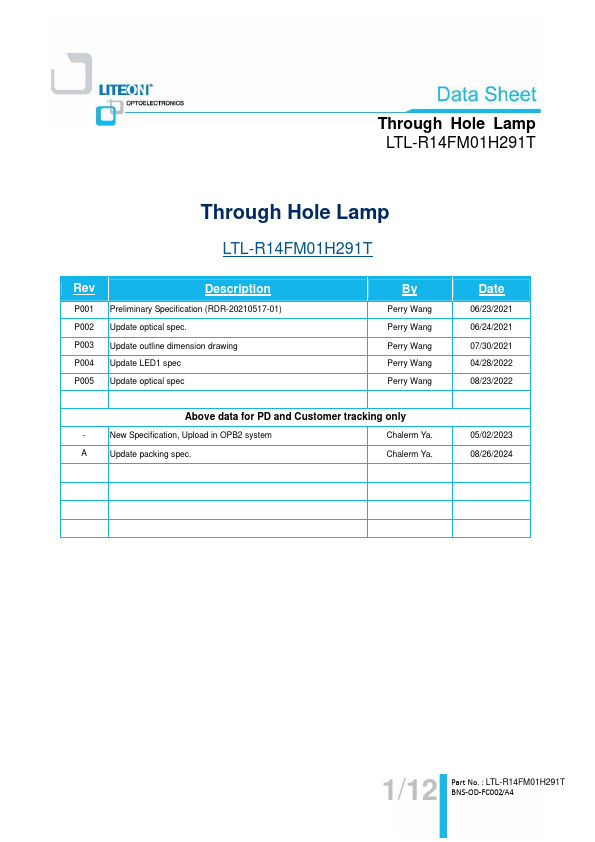

P001 P002 Preliminary Specification (RDR-20210517-01) Update optical spec.P003 P004 P005 Update outline dimension drawing Update LED1 spec Update optical spec By Perry Wang Perry Wang Perry Wang Perry Wang Perry Wang Above data for PD and Customer tracking only - New Specification, Upload in OPB2 system Chalerm Ya.A Update packing spec.Chalerm Ya.Date 06/23/2021 06/24/2021 07/30/2021 04/28/2022 08/23/2022 05/02/2023 08/26/2024 1/12 Part No.: LTL-R14FM01H291T BNS-OD-FC002/A4 T

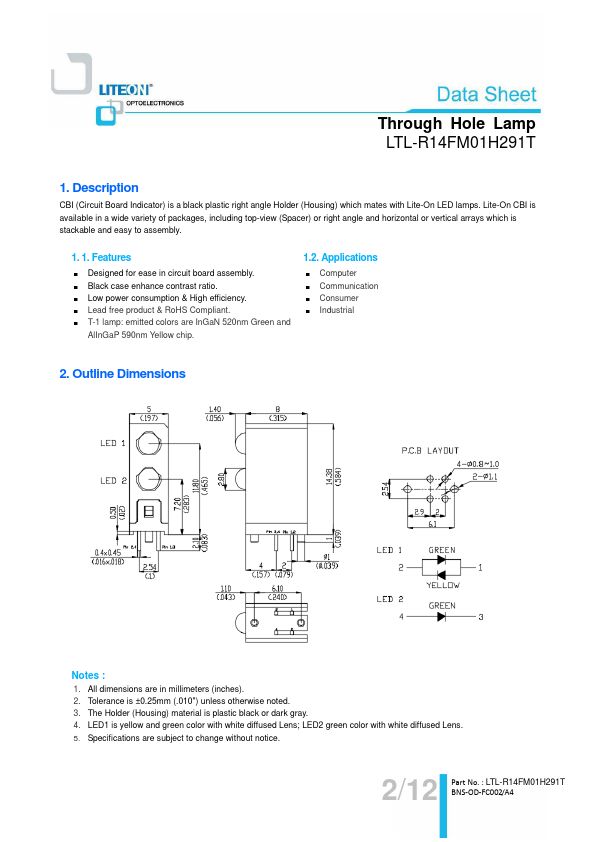

Features

Designed for ease in circuit board assembly.
Black case enhance contrast ratio.
Low power consumption & High efficiency.
Lead free product & RoHS Compliant.
T-1 lamp: emitted colors are InGaN 520nm Green and AlInGaP 590nm Yellow chip. 1.2.
