LTL-R14FSGAJ - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-R14FSGAJ Datasheet Preview — Preview of LTL-R14FSGAJ PDF

Datasheet Details

Part number	LTL-R14FSGAJ
Manufacturer	LITEON
File Size	351.99 KB
Description	Through Hole Lamp
Datasheet	LTL-R14FSGAJ-LITEON.pdf

LTL-R14FSGAJ Product details

Description

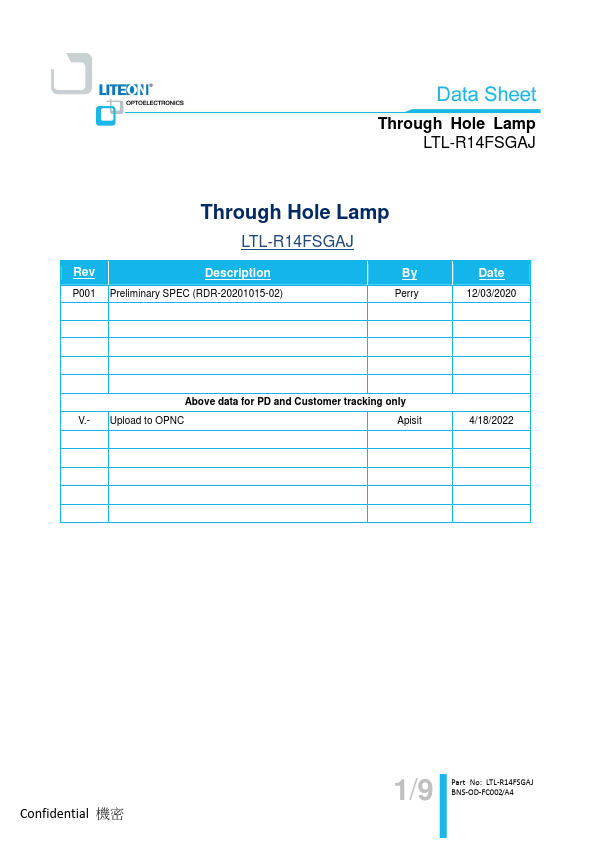

P001 Preliminary SPEC (RDR-20201015-02) By Perry Date 12/03/2020 Above data for PD and Customer tracking only V.- Upload to OPNC Apisit 4/18/2022 Confidential 1/9 Part No: LTL-R14FSGAJ BNS-OD-FC002/A4 Through Hole Lamp LTL-R14FSGAJ 1. Description Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication.Several intensity and viewing angle choices are available in each c

Features

Low power consumption & High efficiency.
Lead free & RoHS Compliant.
T-1 type package White Diffused lens.
AlInGaP Yellow Green and Yellow lamp with white diffused lens. 1.2.
