LTL-R42FEWAH132T Datasheet - LITEON

LTL-R42FEWAH132T, Through Hole Lamp

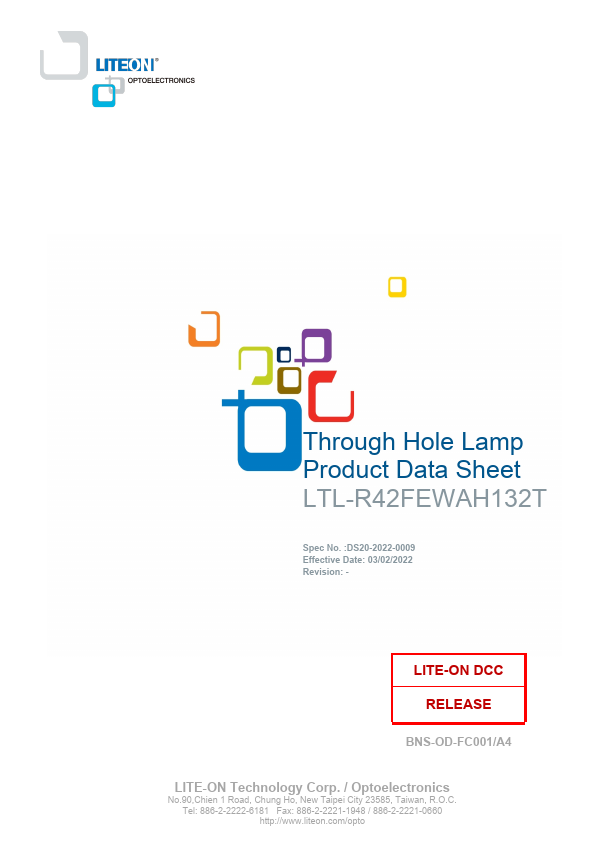

Through Hole Lamp Product Data Sheet LTL-R42FEWAH132T Spec No.:DS20-2022-0009 Effective Date: 03/02/2022 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001.
P01 Preliminary Specification (RDR-20211122) By Tina JH Chen Date 12/1/2021 Above data for PD and Customer tracking only - New Specification, Up.

LTL-R42FEWAH132T-LITEON.pdf

LTL-R42FEWAH132T Datasheet Preview — Preview of LTL-R42FEWAH132T PDF

Datasheet Details

Part number:

LTL-R42FEWAH132T

Manufacturer:

LITEON

File Size:

435.91 KB

Description:

Through Hole Lamp

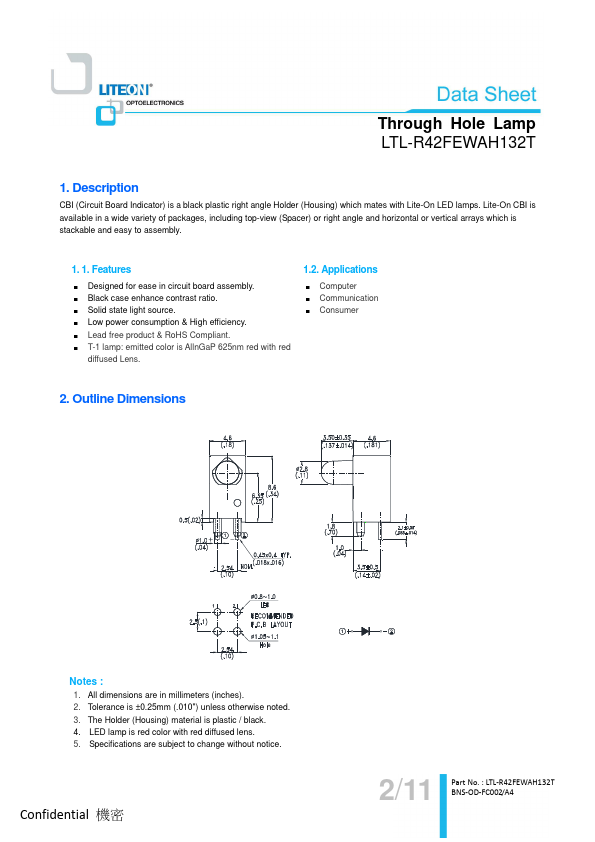

Features

* Designed for ease in circuit board assembly.
* Black case enhance contrast ratio.
* Solid state light source.
* Low power consumption & High efficiency.
* Lead free product & RoHS Compliant.
* T-1 lamp: emitted color is AllnGaP 625nm red with red diffused Lens. 1.2. Applic

Applications

* Computer
* Communication
* Consumer 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic / black. 4. LED lamp is red color with red diffused lens. 5. Specificat
