LTL-R42FTBN4D - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-R42FTBN4D Datasheet Preview — Preview of LTL-R42FTBN4D PDF

Datasheet Details

Part number	LTL-R42FTBN4D
Manufacturer	LITEON
File Size	400.22 KB
Description	Through Hole Lamp
Datasheet	LTL-R42FTBN4D-LITEON.pdf

LTL-R42FTBN4D Product details

Description

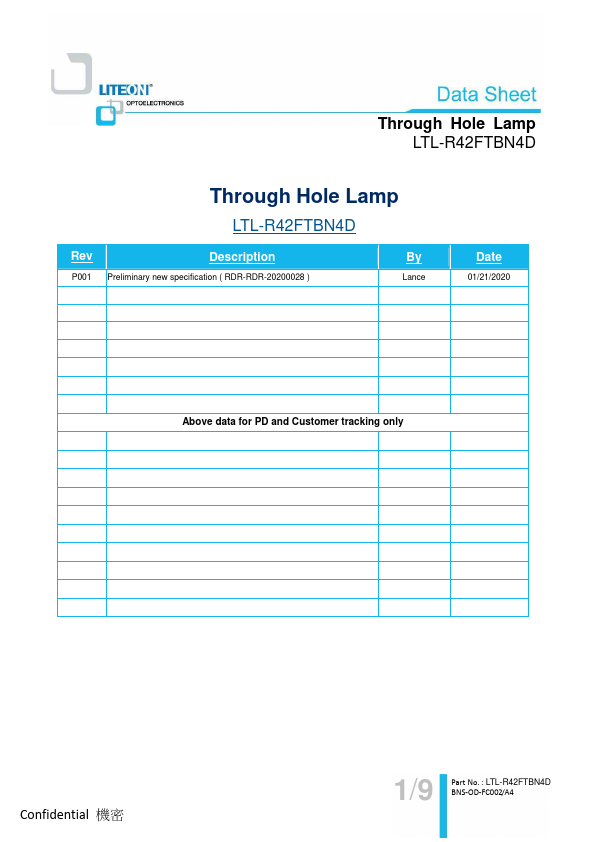

Preliminary new specification ( RDR-RDR-20200028 ) By Lance Date 01/21/2020 Above data for PD and Customer tracking only Confidential 1/9 Part No.: LTL-R42FTBN4D BNS-OD-FC002/A4 Through Hole Lamp LTL-R42FTBN4D 1. Description Through-hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication.Several intensity and viewing angle choices are available in each color for design flexibili

Features

Designed for ease in circuit board assembly.
Low halogen.
I. C compatible/Low current requirement.
White diffused lens.
Low power consumption & High efficiency.
T-1 lamp: Source color is InGaN blue 470nm chip. 1.2.
