Datasheet Details
- Part number
- LTL-R42NEWADHBPT
- Manufacturer
- LITEON
- File Size
- 398.33 KB
- Datasheet
- LTL-R42NEWADHBPT-LITEON.pdf
- Description
- Through Hole Lamp
LTL-R42NEWADHBPT Description

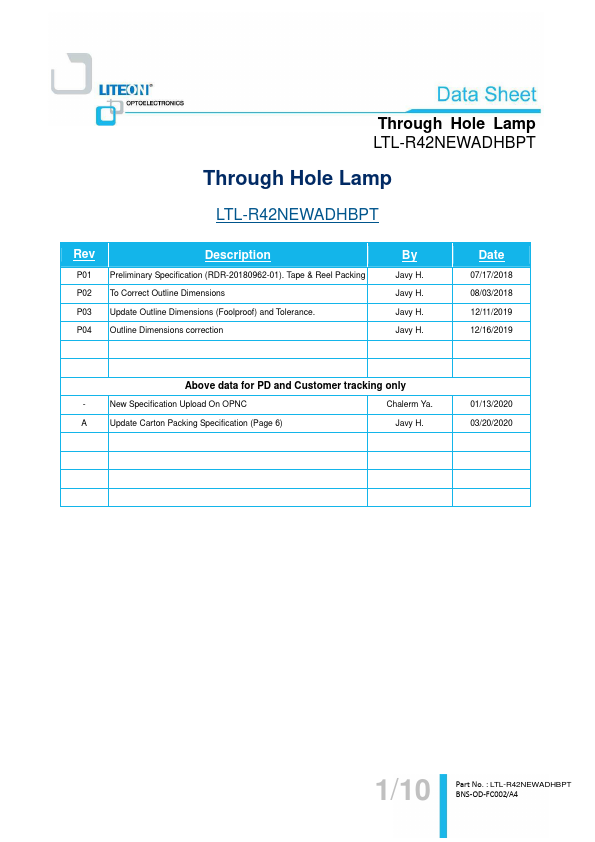

Through Hole Lamp Product Data Sheet LTL-R42NEWADHBPT Spec No.:DS20-2020-0021 Effective Date: 04/28/2020 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001.
Preliminary Specification (RDR-20180962-01).
LTL-R42NEWADHBPT Features
* Designed for ease in circuit board assembly.
* Solid state light source.
* Low power consumption & High efficiency.
* Lead free product & RoHS Compliant.
* T-1 lamp: emitted color is AlInGaP 625nm red with red
diffused Lens.
* It is in tape and reel packing
1.2. Applicatio
LTL-R42NEWADHBPT Applications
* Computer
* Communication
* Consumer
* Industrial

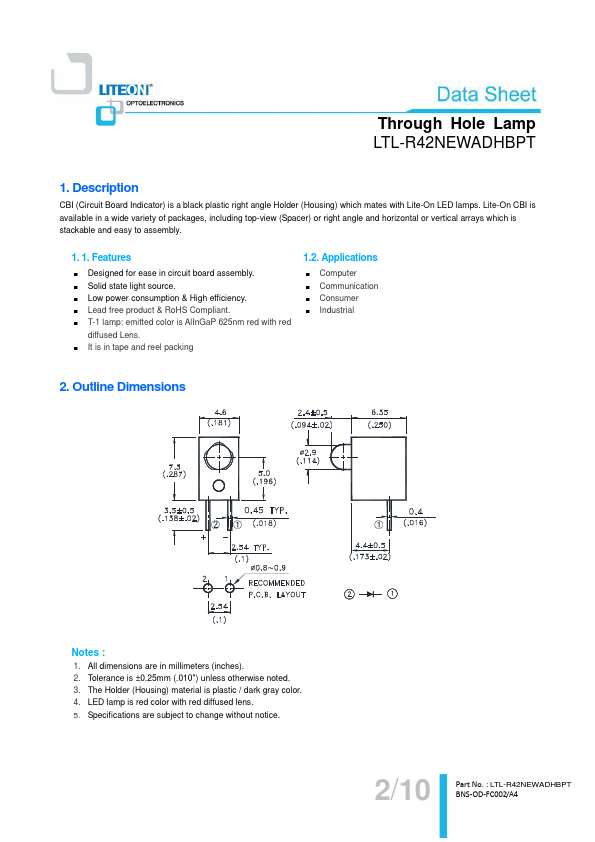

2. Outline Dimensions
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic / dark gray color. 4. LED lamp is red color with red d
