LTL-R42NM01H106P Description

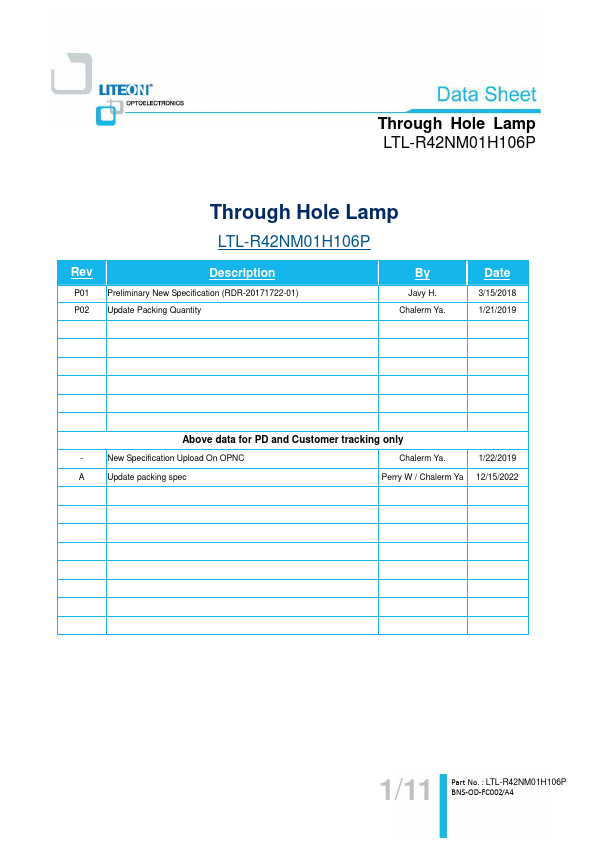

Through Hole Lamp Product Data Sheet LTL-R42NM01H106P Spec No.:DS20-2019-0009 Effective Date: 12/24/2022 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001.
Preliminary New Specification (RDR-20171722-01) Update Packing Quantity By Javy H.

LTL-R42NM01H106P Features

* Designed for ease in circuit board assembly.
* Black case enhance contrast ratio.
* Solid state light source.
* Low power consumption & High efficiency.
* Lead free product & RoHS Compliant.
* T-1 lamp : emitted source are 605nm yellow color and 569nm green color. 1.2. App

LTL-R42NM01H106P Applications

* Computer
* Communication
* Consumer

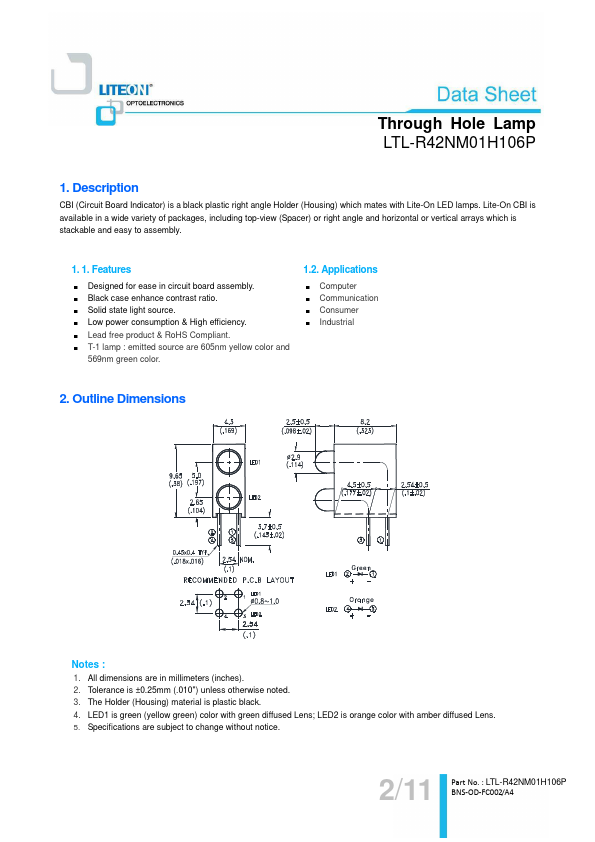

* Industrial 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic black. 4. LED1 is green (yellow green) color with gree

📥 Download Datasheet

LTL-R42NM01H106P Datasheet Preview — Preview of LTL-R42NM01H106P PDF

Datasheet Details

Part number: LTL-R42NM01H106P
Manufacturer: LITEON
File Size: 486.80 KB
Datasheet: LTL-R42NM01H106P-LITEON.pdf
Description: Through Hole Lamp
