LTL14CGSEJ2H214 - Through Hole Lamp

LITEON

LTL14CGSEJ2H214 Datasheet Preview — Preview of LTL14CGSEJ2H214 PDF

Datasheet Details

Part number	LTL14CGSEJ2H214
Manufacturer	LITEON ↗
File Size	414.41 KB
Description	Through Hole Lamp
Datasheet	LTL14CGSEJ2H214-LITEON.pdf

LTL14CGSEJ2H214 Product details

Description

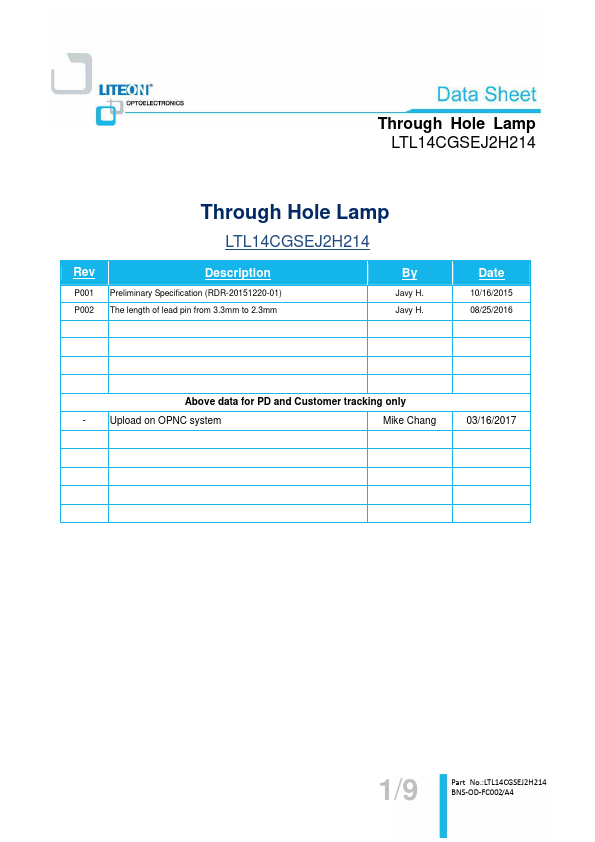

Preliminary Specification (RDR-20151220-01) The length of lead pin from 3.3mm to 2.3mm By Javy H.Javy H.Date 10/16/2015 08/25/2016 Above data for PD and Customer tracking only - Upload on OPNC system Mike Chang 03/16/2017 1/9 Part No.:LTL14CGSEJ2H214 BNS-OD-FC002/A4 Through Hole Lamp LTL14CGSEJ2H214 1. Description CBI (Circuit Board Indicator) is a black plastic right angle Holder (Housing) which mates with Lite-On LED lamps.Lite-On CBI is available in a wide variety of packages, in

Features

Designed for ease in circuit board assembly Black case enhance contrast ratio Solid state light source Low power consumption & High efficiency Lead free product & RoHS Compliant T-1 lamp : Source bi-color are green(yellow green) 568nm/and Yellow 591nm chips. 1.2.
