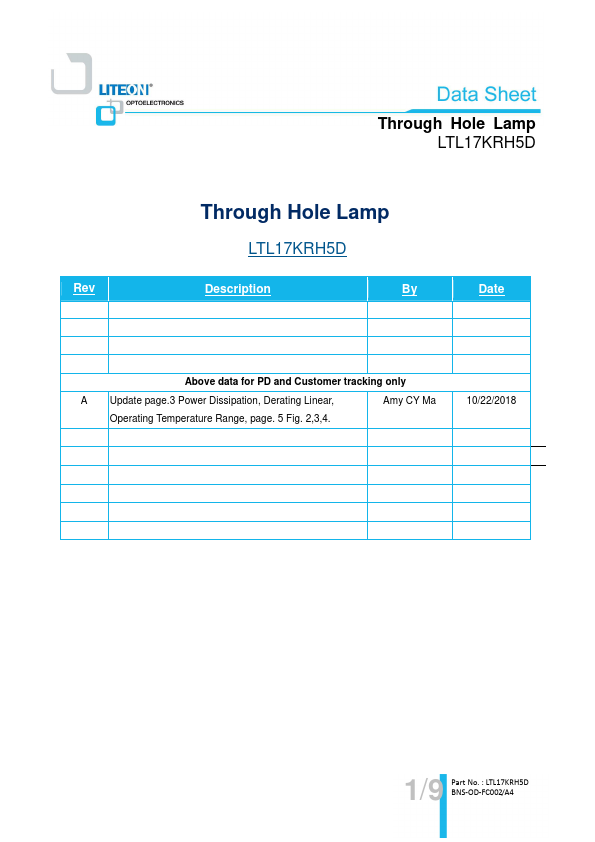

LTL17KRH5D
Description
By
Date
Above data for PD and Customer tracking only
A Update page.3 Power Dissipation, Derating Linear,
Amy CY Ma
Operating Temperature Range, page. 5 Fig. 2,3,4.
10/22/2018
1/9 Part No. : LTL17KRH5D BNS-OD-FC002/A4

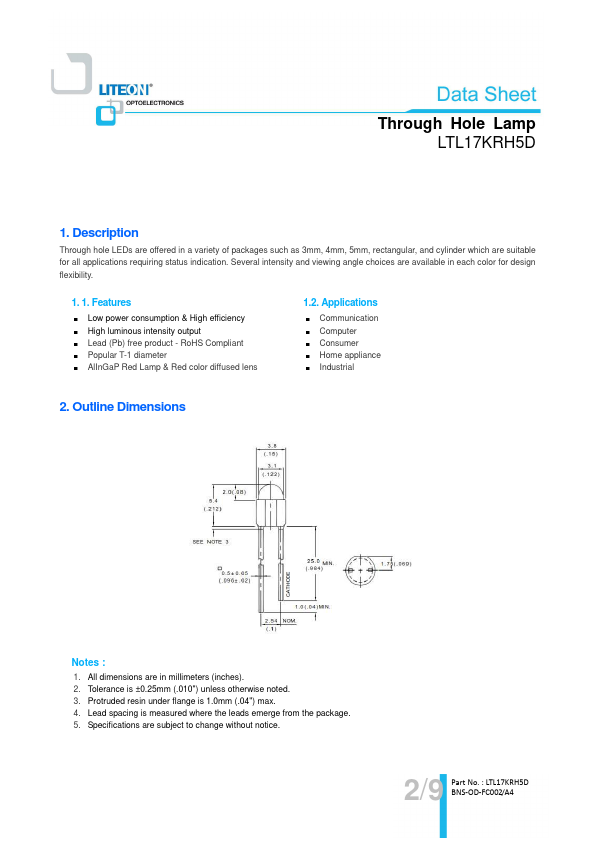

Through Hole Lamp LTL17KRH5D
1. Description
Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
Low power consumption & High efficiency High luminous intensity output Lead (Pb) free product
- Ro HS pliant Popular T-1 diameter Al In Ga P Red Lamp & Red color diffused lens
1.2. Applications munication puter Consumer Home appliance Industrial
2. Outline Dimensions
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max....
