LTL17KRL5K-HF Datasheet | LITEON

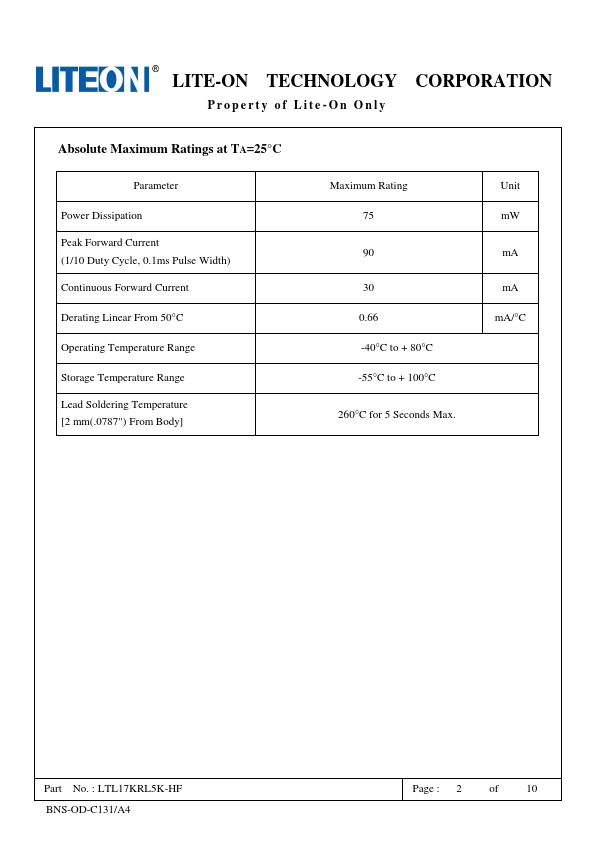

Features - Lead (Pb) free product - Ro HS pliant. - Halogen free product (Cl<900ppm, Br<900ppm; Cl+Br<1500ppm). - High luminous intensity output. - Low power consumption. - High efficiency. - Versatile mounting on P.C. Board or panel. - I.C. patible/low current requirement. - Popular T-1 diameter package. Package Dimensions Part No. LTL17KRL5K-HF Lens Water Clear Source Color Al In Ga P Red Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. The LED lamp original is LTL17KRL5K-HF. 5. Lead spacing is measured where the leads emerge from the package. 6. Specifications are subject to change without notice. Part No. : LTL17KRL5K-HF BNS-OD-C131/A4 Page : 1 of 10 LITE-ON TECHNOLOGY CORPORATION Property of Lite-On Only Absolute Maximum Ratings at TA=25°C Parameter Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) Continuous Forward Current Derating...
