LTL17KRL6D
Description
By
Date
Above data for PD and Customer tracking only
- New data sheet spec for LTL17KRL6D
PIYARATS
A New Format
Bo Rui
11/02/2010 05/15/2023
1/9 Part No. : LTL17KRL6D BNS-OD-FC002/A4

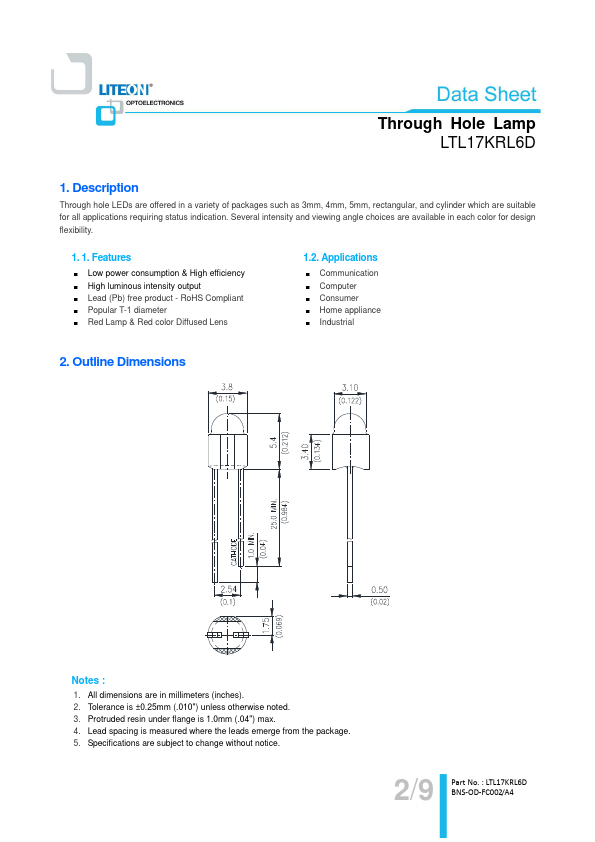

Through Hole Lamp LTL17KRL6D
1. Description
Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- High luminous intensity output
- Lead (Pb) free product
- Ro HS pliant
- Popular T-1 diameter
- Red Lamp & Red color Diffused Lens
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
- Industrial
2. Outline Dimensions
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lead spacing is...
