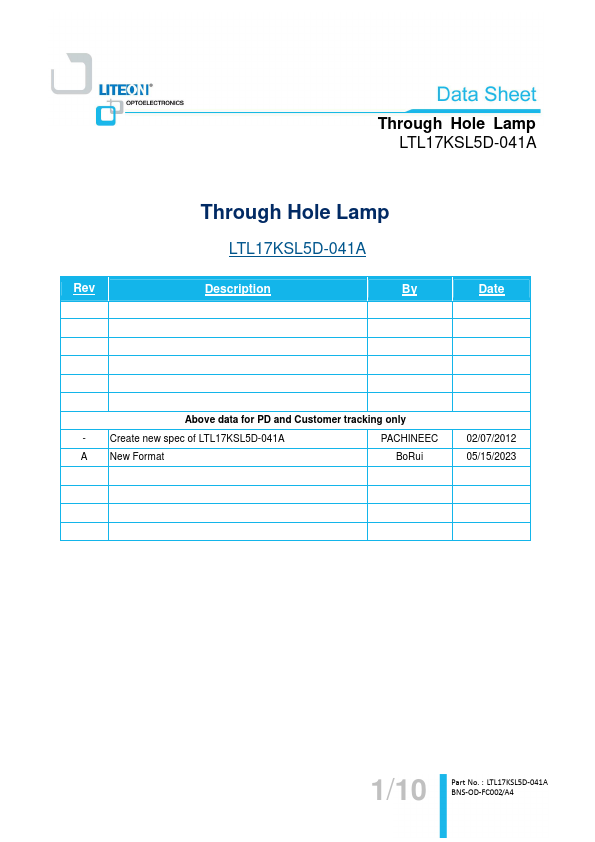

LTL17KSL5D-041A
Description
By
Date
Above data for PD and Customer tracking only
- Create new spec of LTL17KSL5D-041A
PACHINEEC
A New Format
Bo Rui
02/07/2012 05/15/2023
1/10
Part No. : LTL17KSL5D-041A BNS-OD-FC002/A4

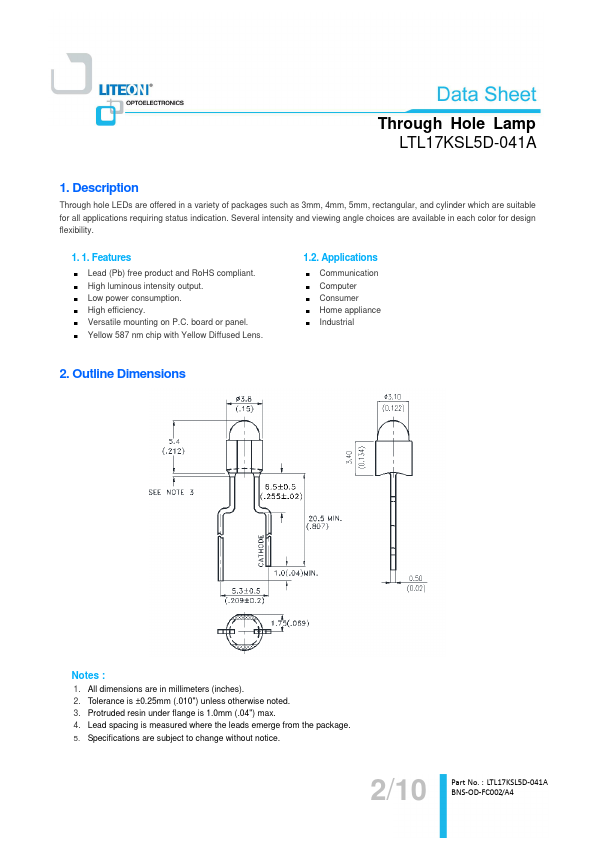

Through Hole Lamp LTL17KSL5D-041A
1. Description
Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Lead (Pb) free product and Ro HS pliant.
- High luminous intensity output.
- Low power consumption.
- High efficiency.
- Versatile mounting on P.C. board or panel.
- Yellow 587 nm chip with Yellow Diffused Lens.
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
- Industrial
2. Outline Dimensions
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin...
