LTL17KSL5K-HF-002
Features
- Lead (Pb) free product
- Ro HS pliant.
- Low Halogen product.
- High luminous intensity output.
- Low power consumption.
- High efficiency.
- Versatile mounting on P.C. Board or panel.
- I.C. patible/low current requirement.
- Popular T-1 diameter package.

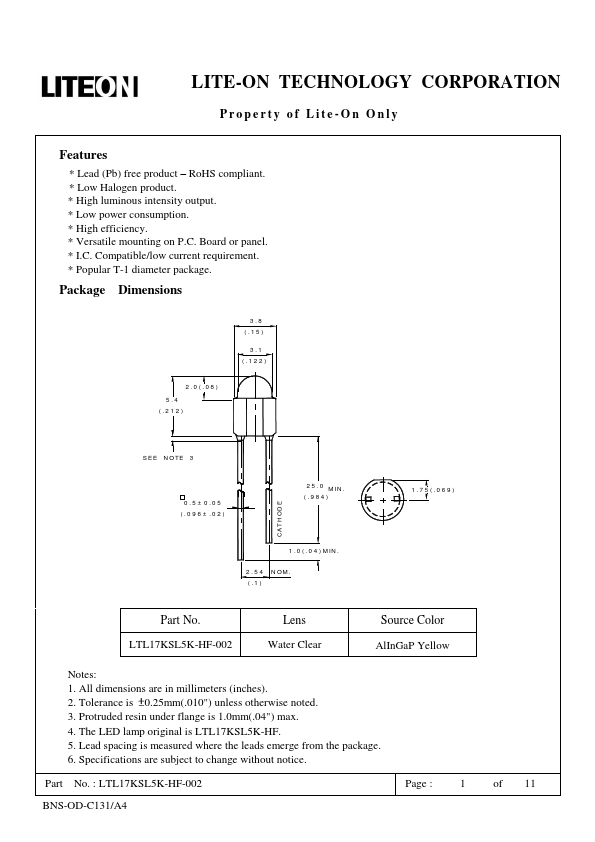

Package Dimensions
2 .0 (.08) 5 .4 (.2 12)
3 .8 ( .1 5 )
3 .1 (.1 22)
SEE N OTE 3
0 .5 ± 0.05 (.0 96 ± .02)
2 5 .0 MIN . (.9 84)
1 .7 5(.0 69)
C A TH OD E
1 .0 ( .0 4 ) MIN .
2 .5 4 NOM. ( .1 )
Part No. LTL17KSL5K-HF-002
Lens Water Clear
Source Color Al In Ga P Yellow
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max.
4. The LED lamp original is LTL17KSL5K-HF. 5. Lead spacing is measured where the leads emerge from the package. 6. Specifications are subject to change without notice.
Part No. : LTL17KSL5K-HF-002 BNS-OD-C131/A4
Page : 1 of 11
