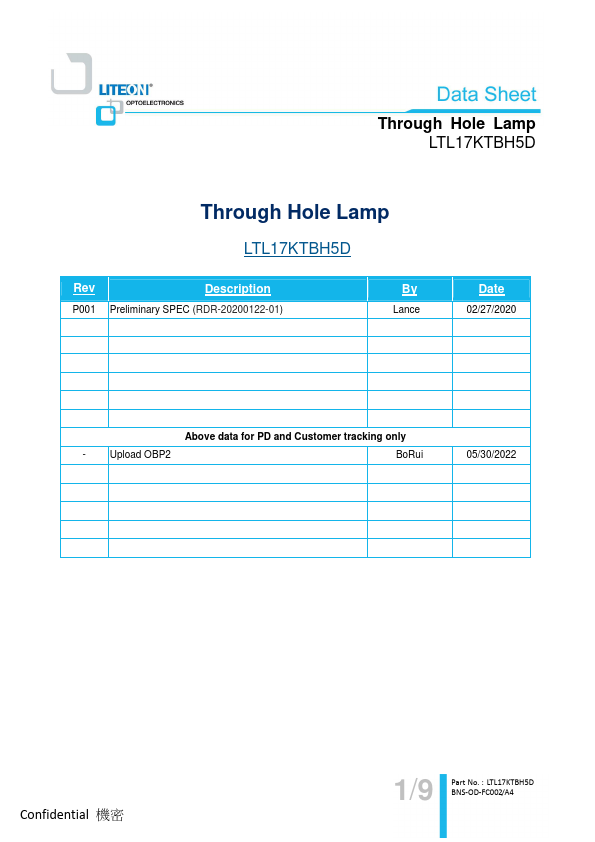

LTL17KTBH5D
Description
P001 Preliminary SPEC (RDR-20200122-01)
By
Lance
Date
02/27/2020
Above data for PD and Customer tracking only
- Upload OBP2
Bo Rui
05/30/2022
Confidential 機密
1/9
Part No. : LTL17KTBH5D BNS-OD-FC002/A4

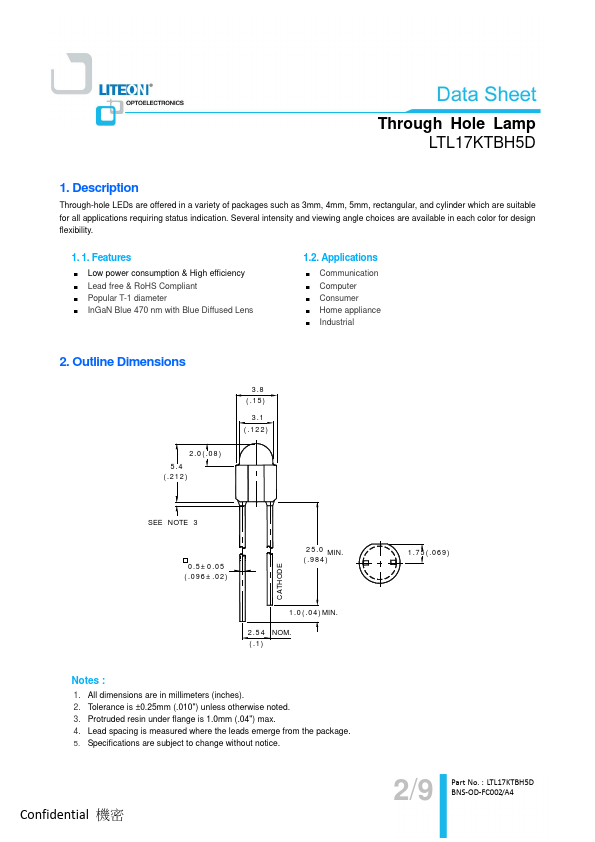

Through Hole Lamp LTL17KTBH5D
1. Description
Through-hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- Lead free & Ro HS pliant
- Popular T-1 diameter
- In Ga N Blue 470 nm with Blue Diffused Lens
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
- Industrial
2. Outline Dimensions
2.0(.08) 5.4 (.212)
3.8 (.15)
3.1 (.122)
SEE NOTE 3
0.5± 0.05 (.096± .02)
2 5 . 0 MIN. (.984)
CATHODE
1 . 0 ( . 0 4 ) MIN.
2 . 5 4 NOM. (.1)
Notes :
1. All dimensions are in millimeters (inches). 2....
