LTL17KTBP3KZ
Features
- Lead (Pb) free product
- Ro HS pliant.
- Low power consumption.
- High efficiency.
- Versatile mounting on p.c. board or panel.
- I.C. patible/low current requirement.

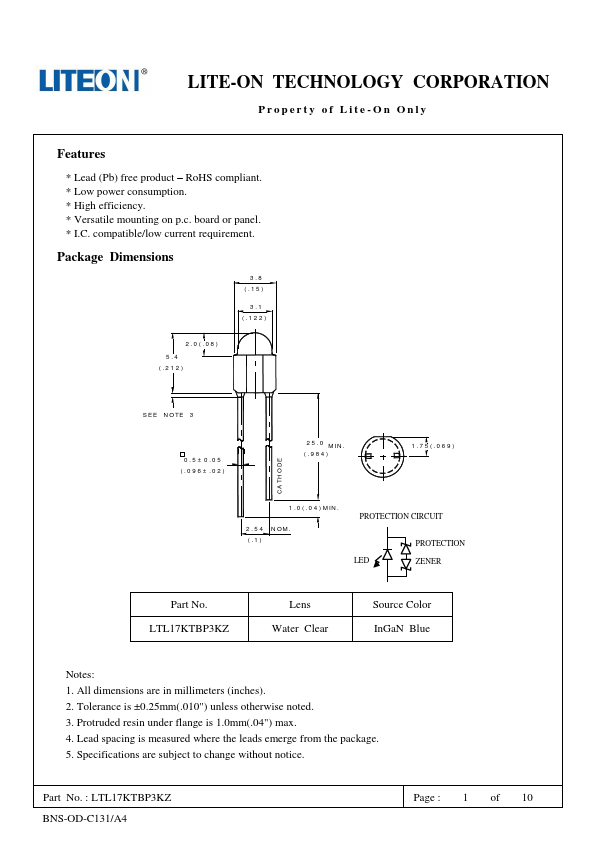

Package Dimensions
3 .8 ( .1 5 )
3 .1 (.1 22)
2 .0 (.08) 5 .4 (.2 12)
SEE N OTE 3
0 .5 ± 0.05 (.0 96 ± .02)
2 5 .0 MIN . (.9 84)
1 .7 5(.0 69)
C A TH OD E
1 .0 ( .0 4 ) MIN .
2 .5 4 NOM. ( .1 )
PROTECTION CIRCUIT
PROTECTION
ZENER
Part No. LTL17KTBP3KZ
Lens Water Clear
Source Color In Ga N Blue
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subject to change without notice.
Part No. : LTL17KTBP3KZ BNS-OD-C131/A4
Page : 1 of 10
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

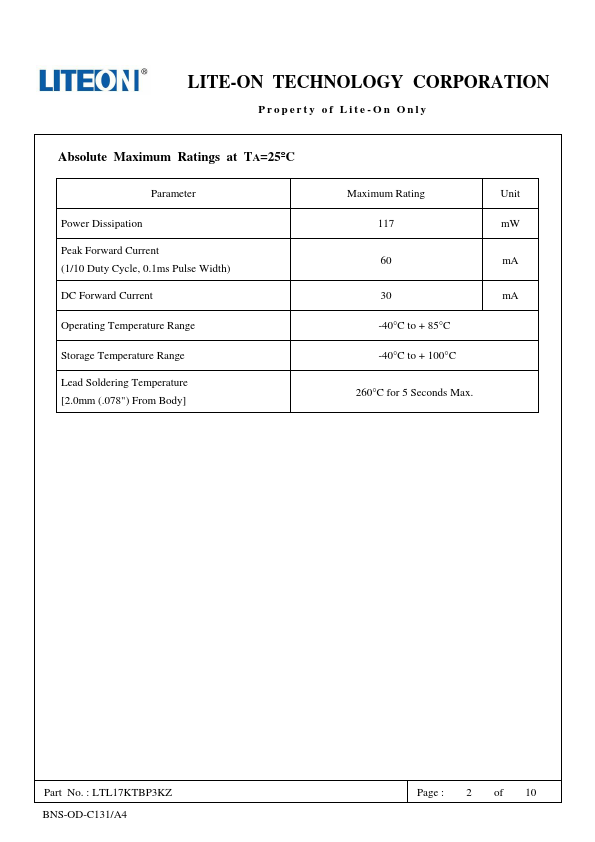

Absolute Maximum Ratings at TA=25ºC
Parameter Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms...
