LTL1CHJDE-011A - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL1CHJDE-011A Datasheet Preview — Preview of LTL1CHJDE-011A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTL1CHJDE-011A
Manufacturer	LITEON
File Size	566.32 KB
Description	Through Hole Lamp
Datasheet	LTL1CHJDE-011A-LITEON.pdf

LTL1CHJDE-011A Product details

Features

Lead (Pb) free product.
RoHS compliant.
High luminous intensity output.
Low power consumption.
High efficiency.
Versatile mounting on P. C. Board or panel.
I. C. Compatible/low current requirement.

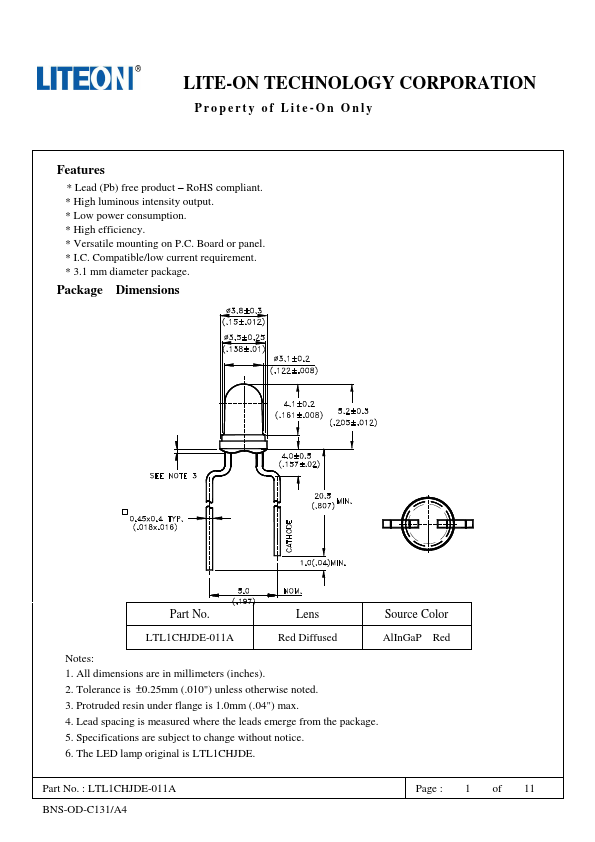

3.1 mm diameter package. Package Dimensions Part No. Lens Source Color LTL1CHJDE-011A Red Diffused AlInGaP Red Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under.
