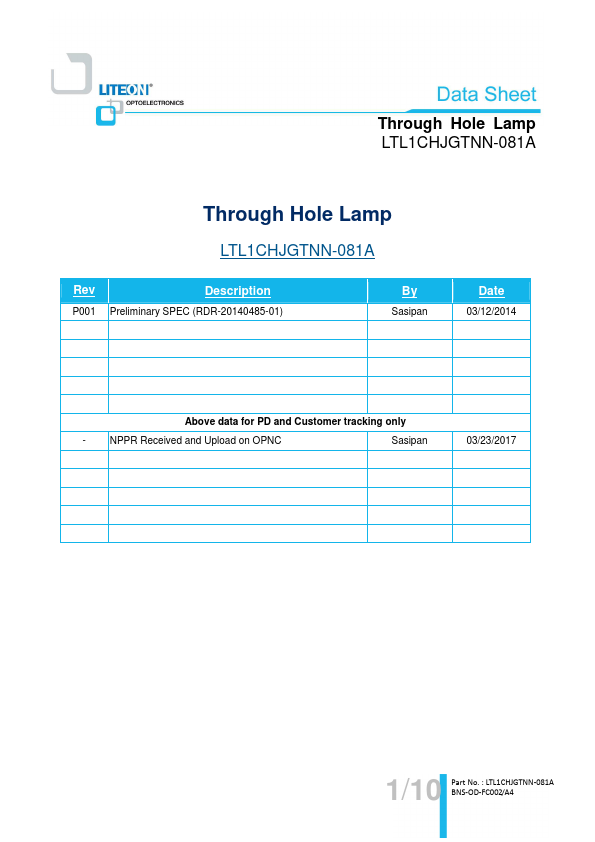

LTL1CHJGTNN-081A
Description
P001 Preliminary SPEC (RDR-20140485-01)
By
Sasipan
Date
03/12/2014
Above data for PD and Customer tracking only
- NPPR Received and Upload on OPNC
Sasipan
03/23/2017
1/10 Part No. : LTL1CHJGTNN-081A BNS-OD-FC002/A4
Through Hole Lamp LTL1CHJGTNN-081A
1. Description
Through-hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
Low power consumption & High efficiency Lead free & Ro HS pliant Popular T-1 diameter Green Al In Ga P 572nm Lamp & Green transparent lens
1.2. Applications munication puter Consumer Home appliance Industrial
2. Outline Dimensions
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lead spacing is measured where...
