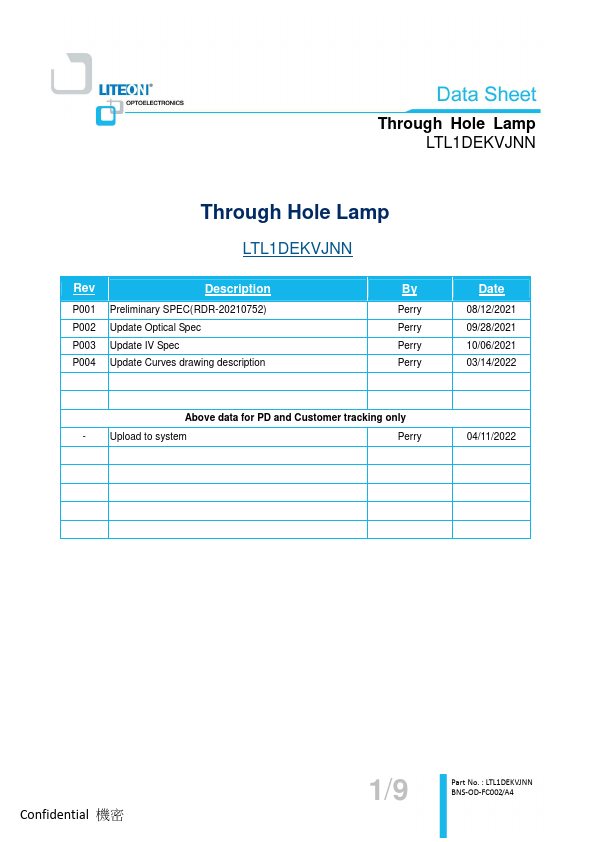

LTL1DEKVJNN
Description
P001 P002 P003 P004
Preliminary SPEC(RDR-20210752) Update Optical Spec Update IV Spec Update Curves drawing description
By
Perry Perry Perry Perry
Date
08/12/2021 09/28/2021 10/06/2021 03/14/2022
Above data for PD and Customer tracking only
- Upload to system
Perry
04/11/2022
Confidential 機密
1/9
Part No. : LTL1DEKVJNN BNS-OD-FC002/A4

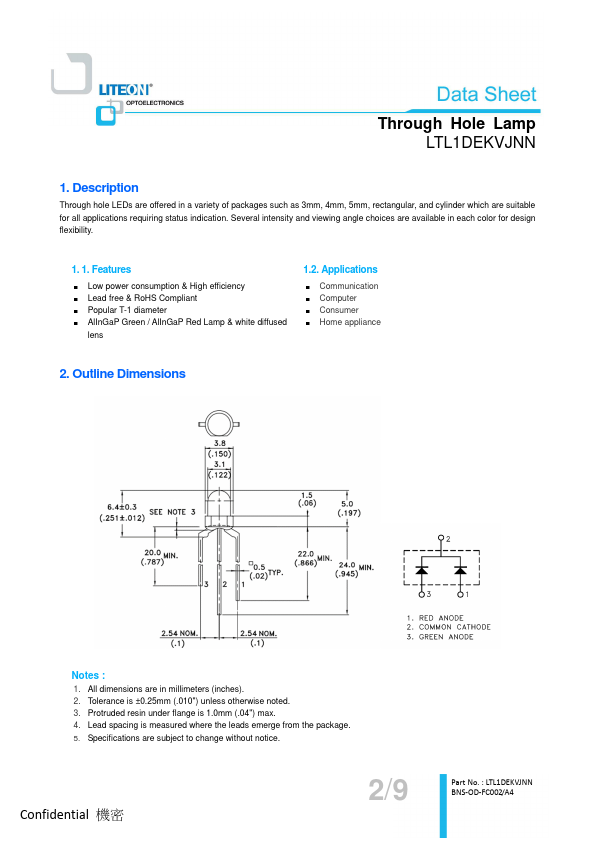

Through Hole Lamp LTL1DEKVJNN
1. Description
Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- Lead free & Ro HS pliant
- Popular T-1 diameter
- Al In Ga P Green / Al In Ga P Red Lamp & white diffused lens
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
2. Outline Dimensions
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance...
