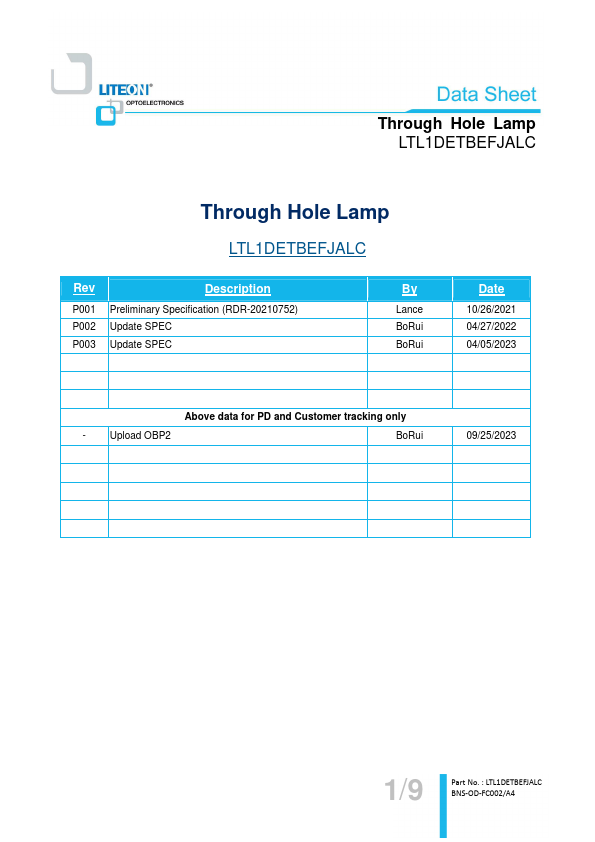

LTL1DETBEFJALC
Description
P001 P002 P003
Preliminary Specification (RDR-20210752) Update SPEC Update SPEC
By
Lance Bo Rui Bo Rui
Date
10/26/2021 04/27/2022 04/05/2023
Above data for PD and Customer tracking only
- Upload OBP2
Bo Rui
09/25/2023
1/9
Part No. : LTL1DETBEFJALC BNS-OD-FC002/A4

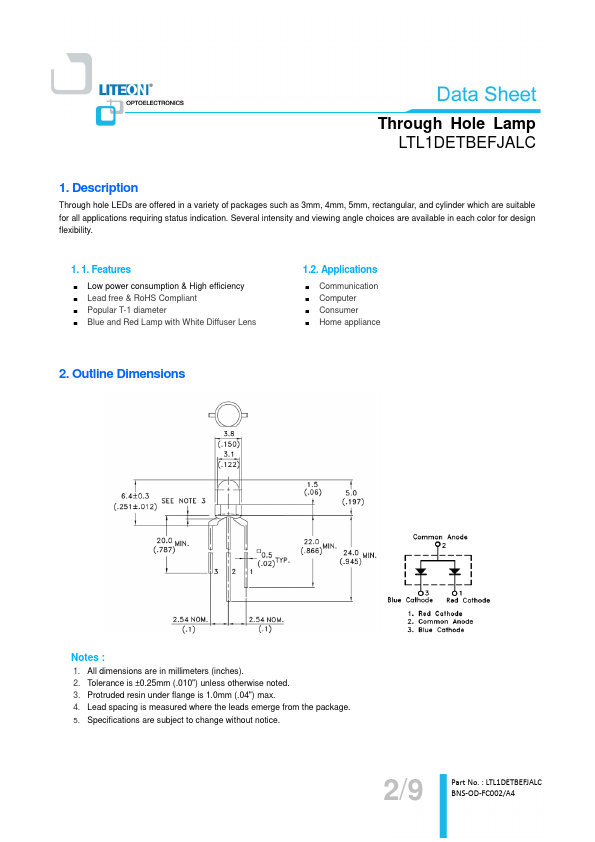

Through Hole Lamp LTL1DETBEFJALC
1. Description
Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- Lead free & Ro HS pliant
- Popular T-1 diameter
- Blue and Red Lamp with White Diffuser Lens
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
2. Outline Dimensions
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm...
