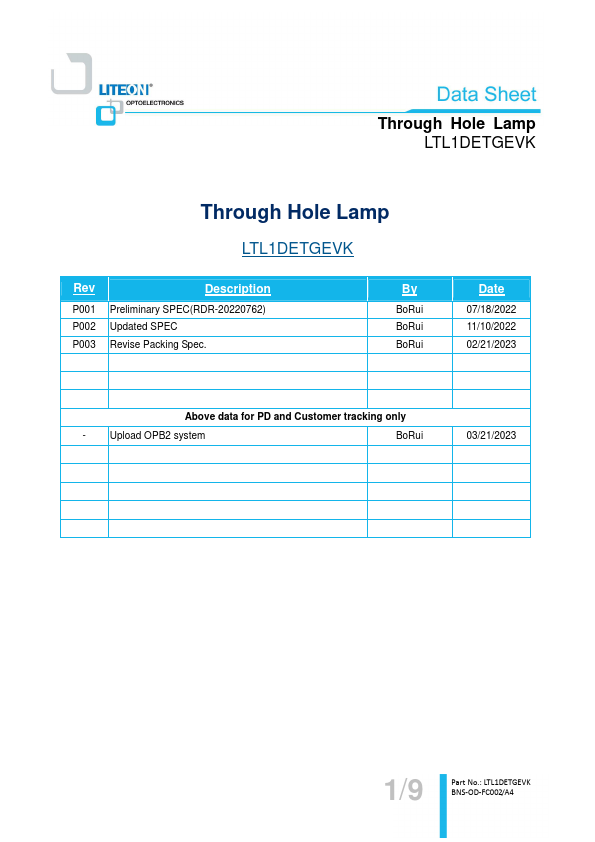

LTL1DETGEVK
Description
P001 P002 P003
Preliminary SPEC(RDR-20220762) Updated SPEC Revise Packing Spec.
By
Bo Rui Bo Rui Bo Rui
Date
07/18/2022 11/10/2022 02/21/2023
Above data for PD and Customer tracking only
- Upload OPB2 system
Bo Rui
03/21/2023
1/9

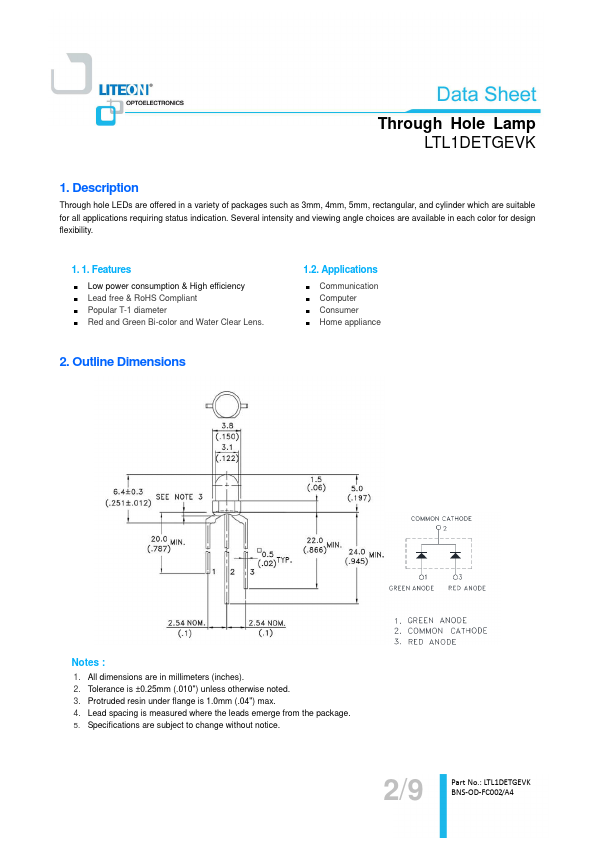

Part No.: LTL1DETGEVK BNS-OD-FC002/A4
Through Hole Lamp LTL1DETGEVK
1. Description
Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- Lead free & Ro HS pliant
- Popular T-1 diameter
- Red and Green Bi-color and Water Clear Lens.
2. Outline Dimensions
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm...
