LTL2H3EZ1K

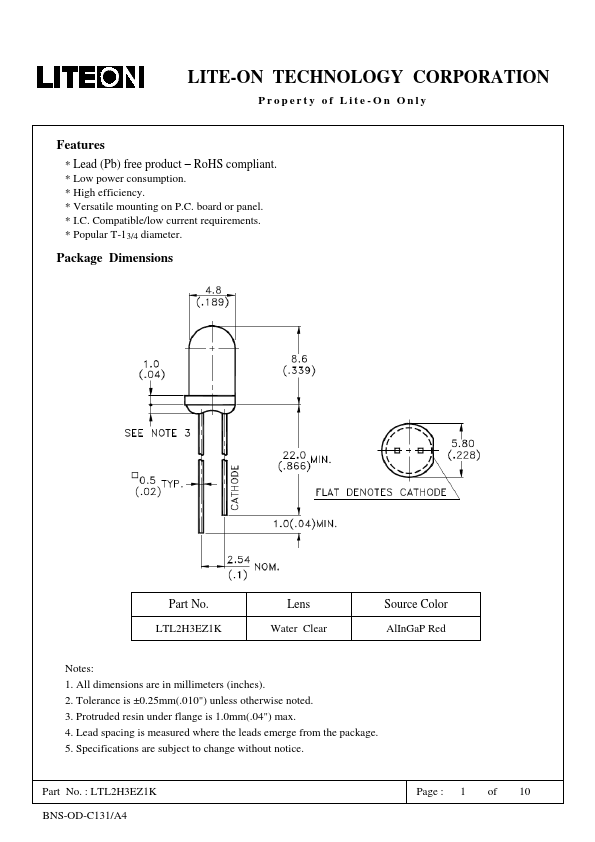

Features
- Lead (Pb) free product
- Ro HS pliant.
- Low power consumption.
- High efficiency.
- Versatile mounting on P.C. board or panel.
- I.C. patible/low current requirements.
- Popular T-13/4 diameter.
Package Dimensions
Part No. LTL2H3EZ1K
Lens Water Clear
Source Color Al In Ga P Red
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subject to change without notice.
Part No. : LTL2H3EZ1K BNS-OD-C131/A4
Page : 1 of 10
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

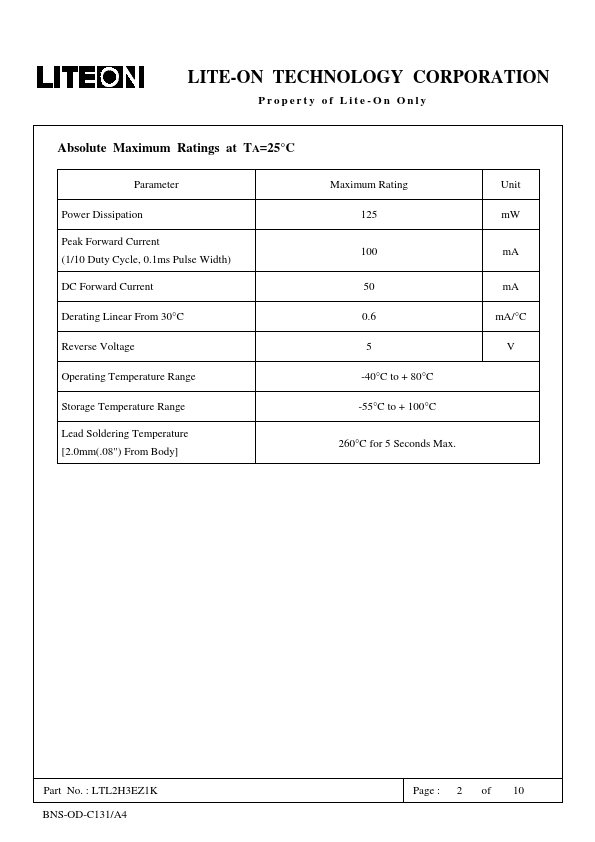

Absolute Maximum Ratings at TA=25°C
Parameter Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) DC Forward Current Derating Linear From 30°C Reverse Voltage Operating Temperature Range Storage Temperature Range Lead Soldering Temperature [2.0mm(.08") From Body]
Maximum Rating 125...
