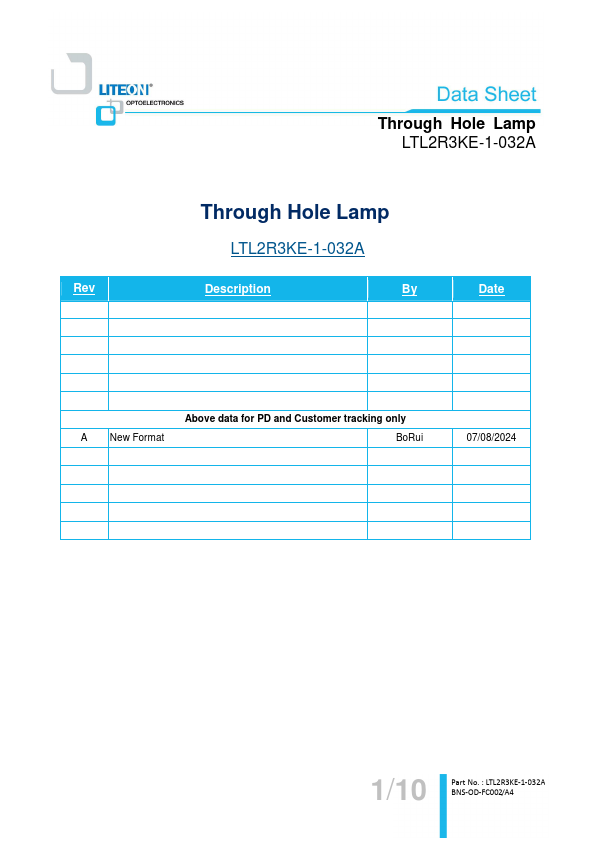

LTL2R3KE-1-032A
Description
By
Date
Above data for PD and Customer tracking only
A New Format
Bo Rui
07/08/2024
1/10
Part No. : LTL2R3KE-1-032A BNS-OD-FC002/A4

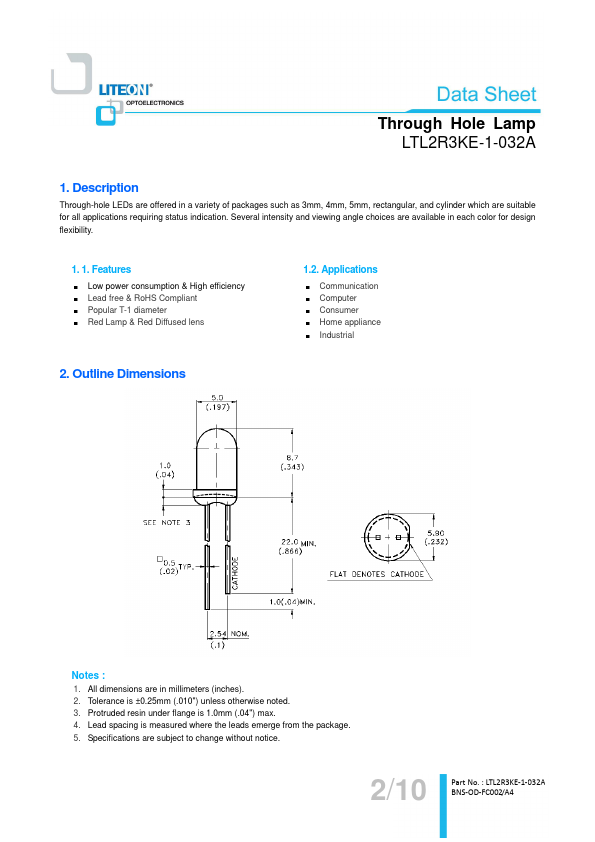

Through Hole Lamp LTL2R3KE-1-032A
1. Description
Through-hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- Lead free & Ro HS pliant
- Popular T-1 diameter
- Red Lamp & Red Diffused lens
2. Outline Dimensions
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
- Industrial
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subject to change without...
