LTL2R3KG - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL2R3KG Datasheet Preview — Preview of LTL2R3KG PDF

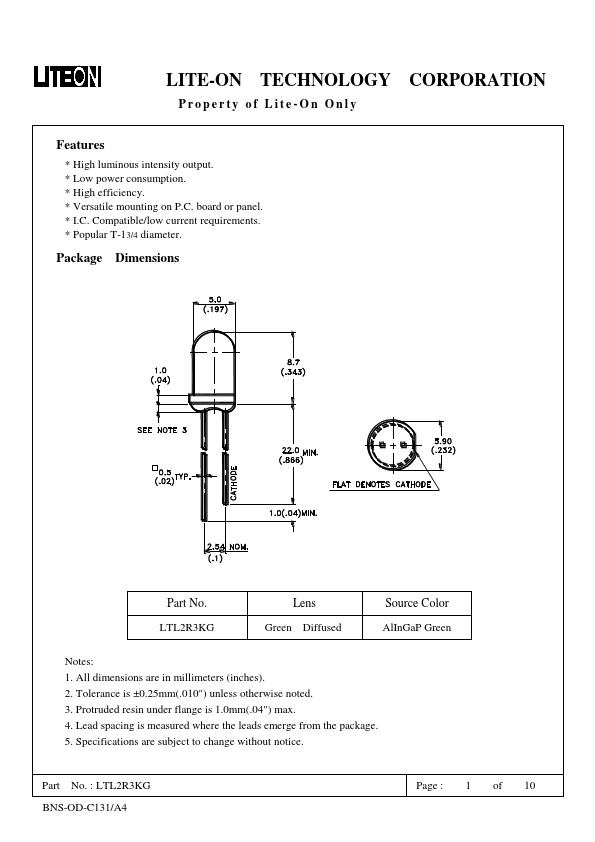

datasheet Preview Page 2

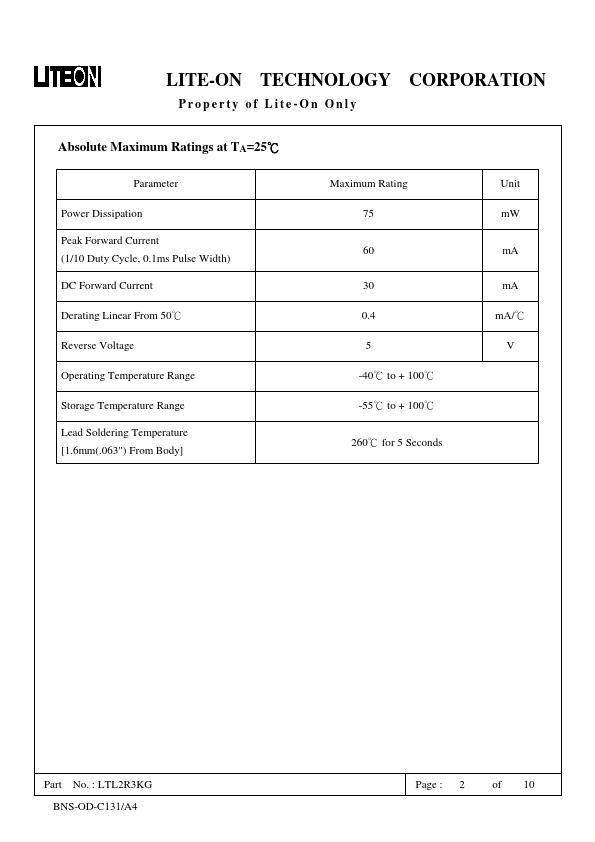

datasheet Preview Page 3

Datasheet Details

Part number	LTL2R3KG
Manufacturer	LITEON ↗
File Size	471.33 KB
Description	Through Hole Lamp
Datasheet	LTL2R3KG-LITEON.pdf

LTL2R3KG Product details

Features

High luminous intensity output.
Low power consumption.
High efficiency.
Versatile mounting on P. C. board or panel.
I. C. Compatible/low current requirements.
Popular T-13/4 diameter. Package Dimensions Part No. LTL2R3KG Lens Green Diffused Source Color AlInGaP Green Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where.
