LTL2V3EQ3J

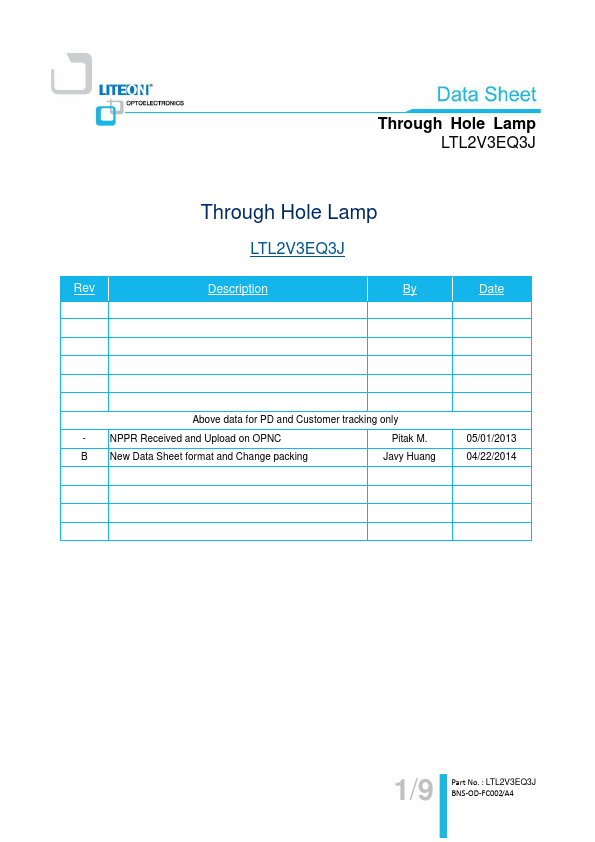

Description
By
Date
Above data for PD and Customer tracking only
- NPPR Received and Upload on OPNC
Pitak M.
B New Data Sheet format and Change packing
Javy Huang
05/01/2013 04/22/2014
1/9
Part No. : LTL2V3EQ3J BNS-OD-FC002/A4

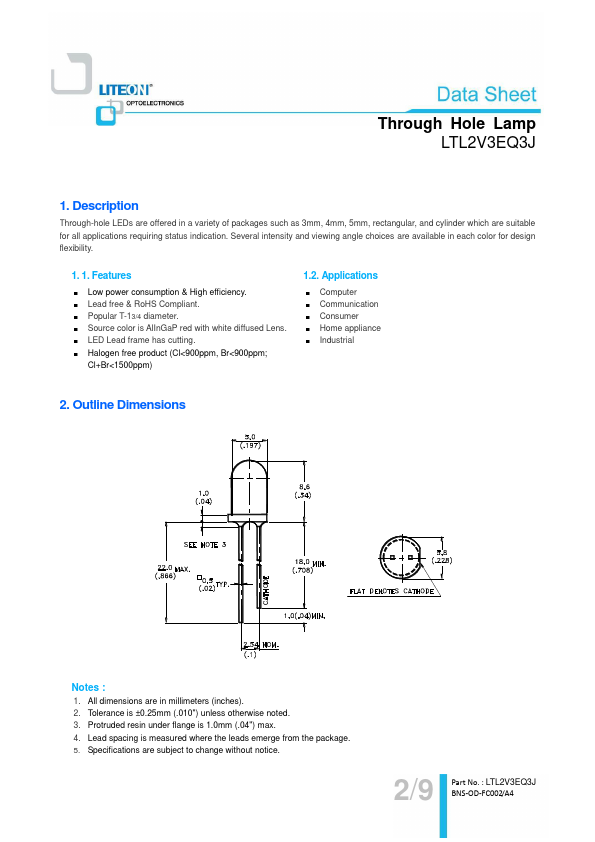

Through Hole Lamp LTL2V3EQ3J
1. Description
Through-hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency.
- Lead free & Ro HS pliant.
- Popular T-13/4 diameter.
- Source color is Al In Ga P red with white diffused Lens.
- LED Lead frame has cutting.
- Halogen free product (Cl<900ppm, Br<900ppm;
Cl+Br<1500ppm)
1.2. Applications
- puter
- munication
- Consumer
- Home appliance
- Industrial
2. Outline Dimensions
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm...
