LTL2V3EW3K Datasheet - LITEON

LTL2V3EW3K, Through Hole Lamp

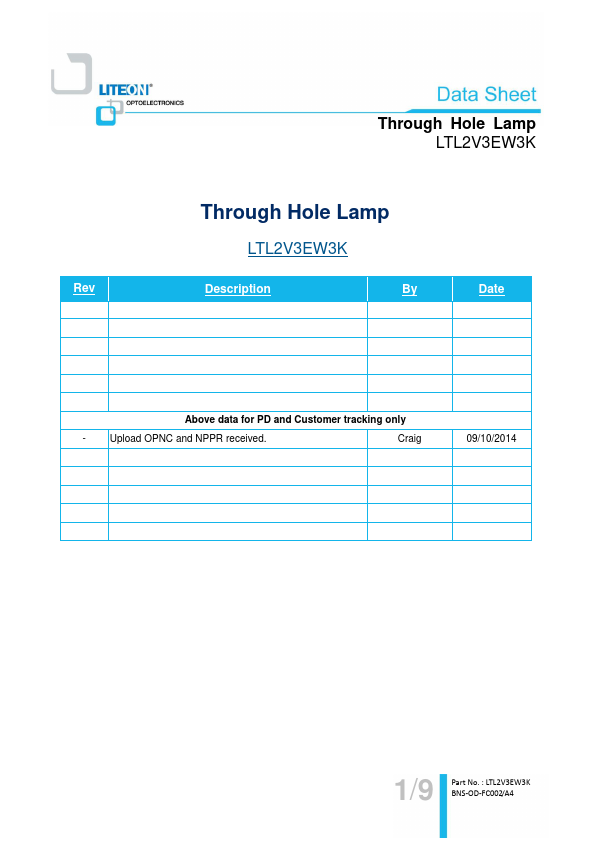

Through Hole Lamp Product Data Sheet LTL2V3EW3K Spec No.: DS20-2014-0071 Effective Date: 09/23/2014 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LI.
By Date Above data for PD and Customer tracking only - Upload OPNC and NPPR received.

datasheet Preview Page 1 from Datasheet4u.com

LTL2V3EW3K-LITEON.pdf

LTL2V3EW3K Datasheet Preview — Preview of LTL2V3EW3K PDF

Datasheet Details

Part number:

LTL2V3EW3K

Manufacturer:

LITEON

File Size:

601.17 KB

Description:

Through Hole Lamp

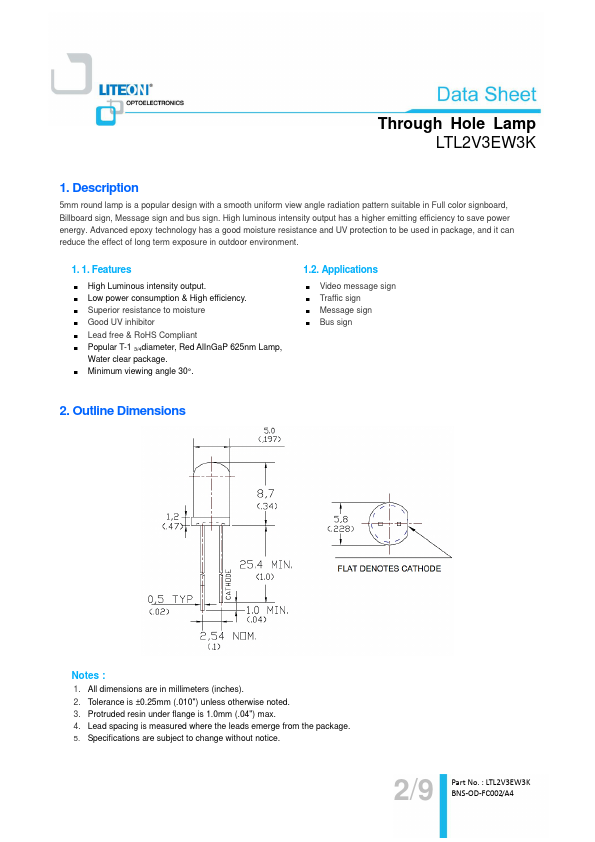

Features

* High Luminous intensity output.
* Low power consumption & High efficiency.
* Superior resistance to moisture
* Good UV inhibitor
* Lead free & RoHS Compliant
* Popular T-1 3/4diameter, Red AlInGaP 625nm Lamp, Water clear package.
* Minimum viewing angle 30°. 1.2. Appli

Applications

* Video message sign
* Traffic sign
* Message sign
* Bus sign 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lead spacing is measured where
