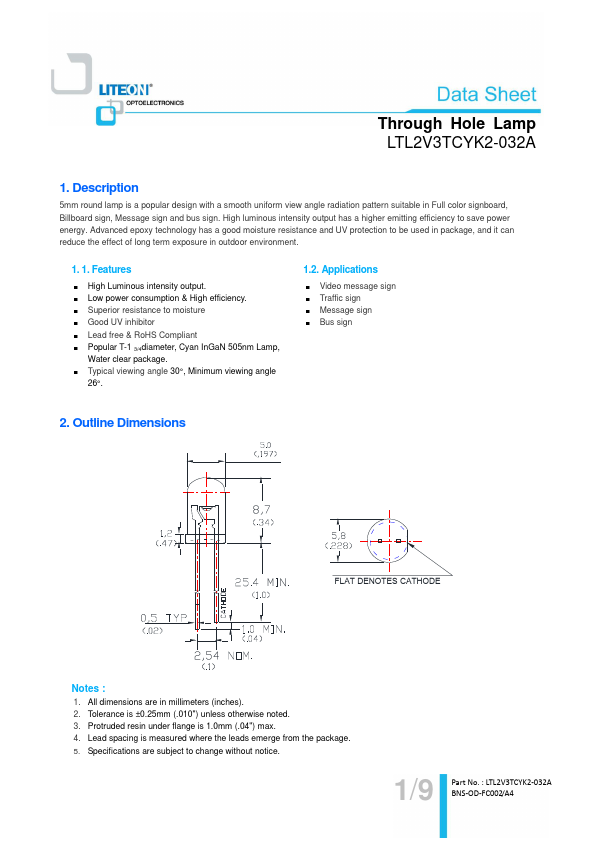

Through Hole Lamp Product Data Sheet LTL2V3TCYK2-032A Spec No.: DS20-2012-0157 Effective Date: 04/08/2014 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001.
5mm round lamp is a popular design with a smooth uniform view angle radiation pattern suitable in Full color signboard, Billboard sign, Message sign a.

datasheet Preview Page 1 from Datasheet4u.com

LTL2V3TCYK2-032A-LITEON.pdf

LTL2V3TCYK2-032A Datasheet Preview — Preview of LTL2V3TCYK2-032A PDF

Datasheet Details

Part number:

LTL2V3TCYK2-032A

Manufacturer:

LITEON

File Size:

1.34 MB

Description:

Through Hole Lamp

Features

* High Luminous intensity output.
* Low power consumption & High efficiency.
* Superior resistance to moisture
* Good UV inhibitor
* Lead free & RoHS Compliant
* Popular T-1 3/4diameter, Cyan InGaN 505nm Lamp, Water clear package.
* Typical viewing angle 30°, Minimum view

Applications

* Video message sign
* Traffic sign
* Message sign
* Bus sign 2. Outline Dimensions FLAT DENOTES CATHODE Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lead spac
