LTL42FGRBBH281, Through Hole Lamp

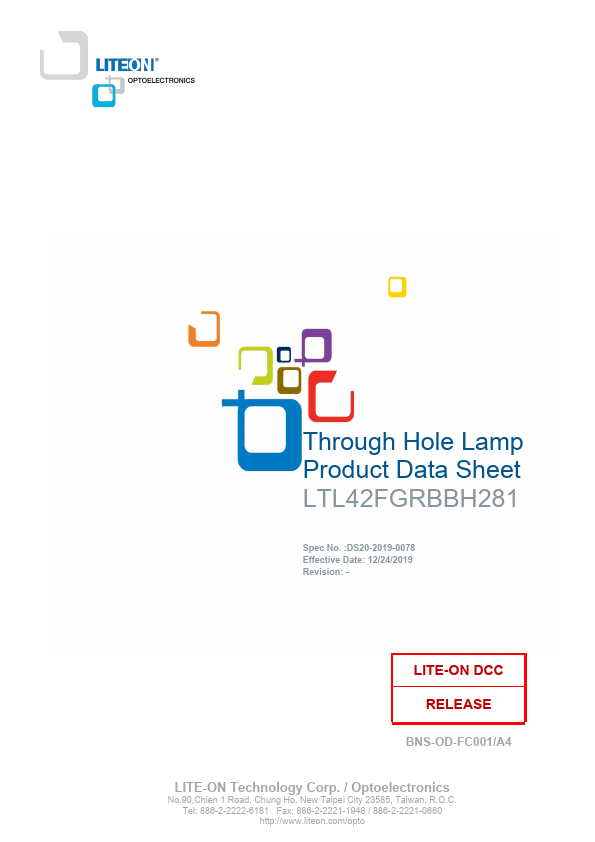

Through Hole Lamp Product Data Sheet LTL42FGRBBH281 Spec No.:DS20-2019-0078 Effective Date: 12/24/2019 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A.

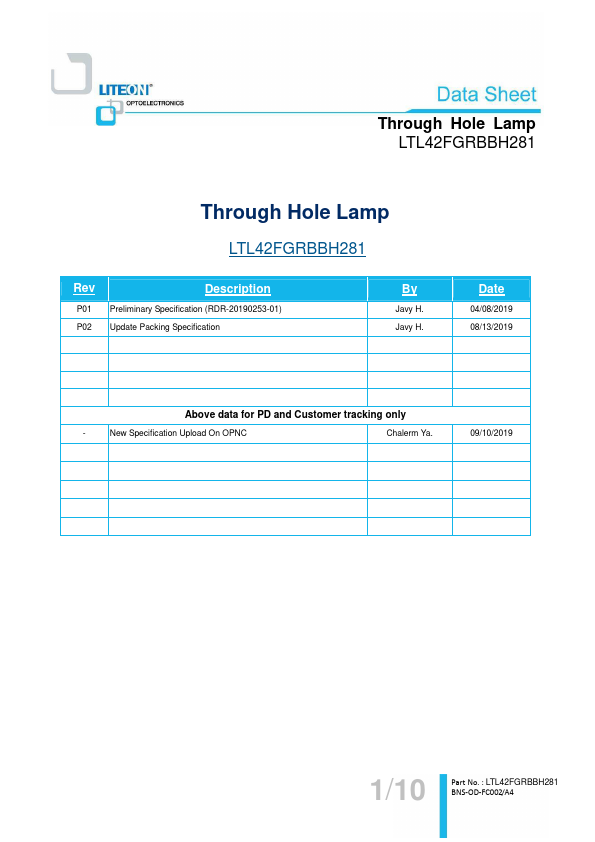

P01 Preliminary Specification (RDR-20190253-01) P02 Update Packing Specification By Javy H.

LTL42FGRBBH281-LITEON.pdf

LTL42FGRBBH281 Datasheet Preview — Preview of LTL42FGRBBH281 PDF

Datasheet Details

Part number:

LTL42FGRBBH281

Manufacturer:

LITEON

File Size:

496.51 KB

Description:

Through Hole Lamp

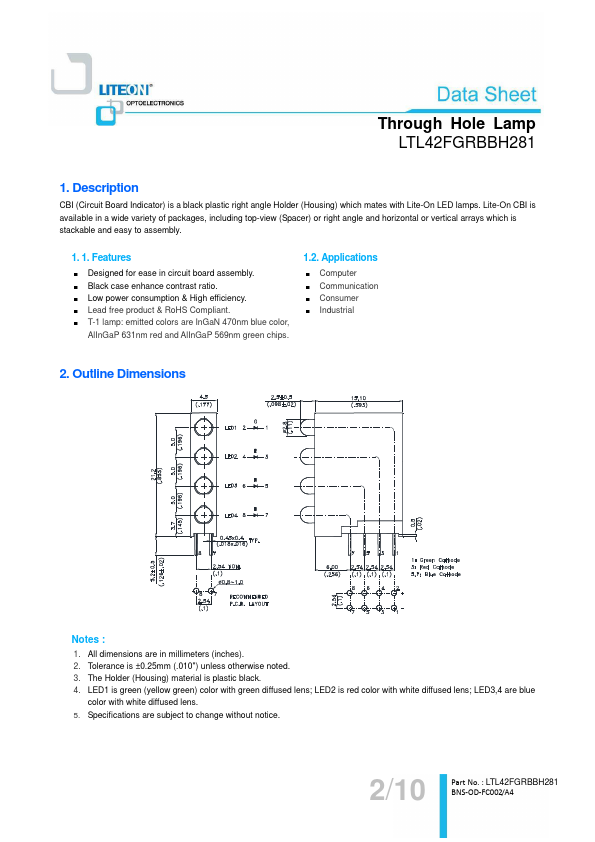

Features

* Designed for ease in circuit board assembly.
* Black case enhance contrast ratio.
* Low power consumption & High efficiency.
* Lead free product & RoHS Compliant.
* T-1 lamp: emitted colors are InGaN 470nm blue color, AlInGaP 631nm red and AlInGaP 569nm green chips. 1.2. Appli

Applications

* Computer
* Communication
* Consumer
* Industrial 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic black. 4. LED1 is green (yellow green) color with gree
