LTL42FTBG9JH213T Datasheet - LITEON

LTL42FTBG9JH213T, Through Hole Lamp

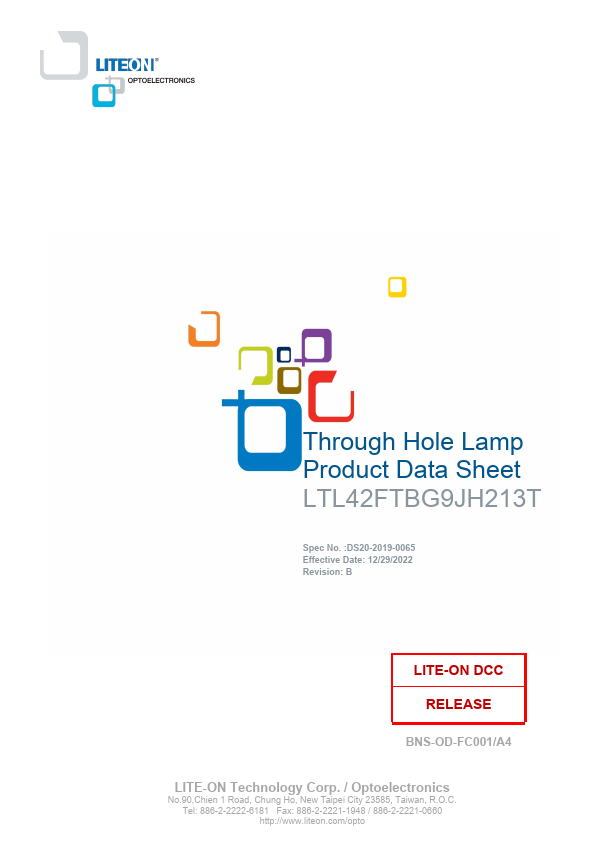

Through Hole Lamp Product Data Sheet LTL42FTBG9JH213T Spec No.:DS20-2019-0065 Effective Date: 12/29/2022 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001.

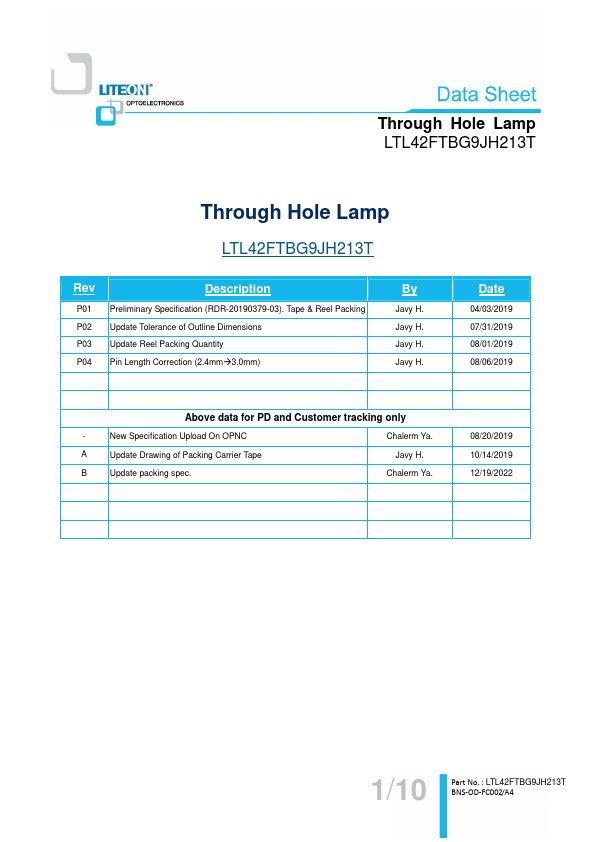

P01 Preliminary Specification (RDR-20190379-03).

LTL42FTBG9JH213T-LITEON.pdf

LTL42FTBG9JH213T Datasheet Preview — Preview of LTL42FTBG9JH213T PDF

Datasheet Details

Part number:

LTL42FTBG9JH213T

Manufacturer:

LITEON

File Size:

366.66 KB

Description:

Through Hole Lamp

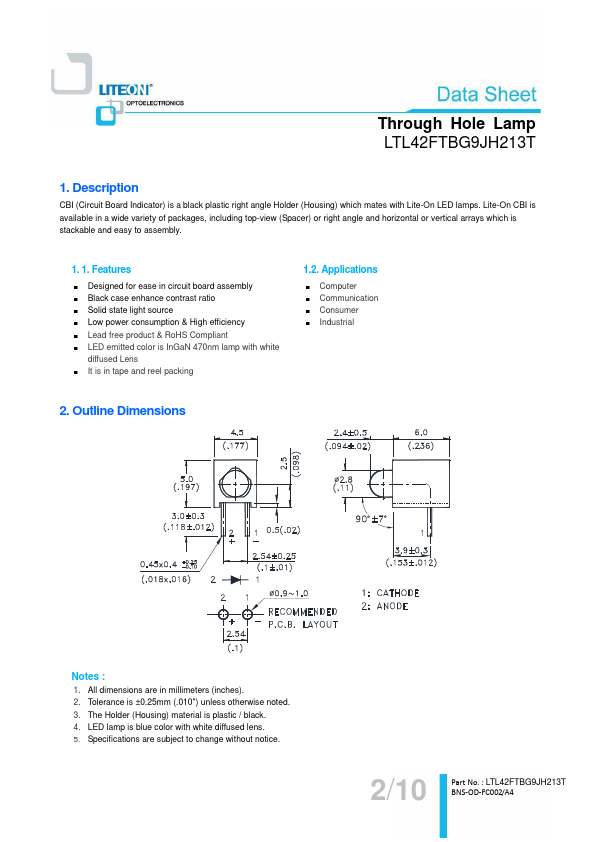

Features

* Designed for ease in circuit board assembly
* Black case enhance contrast ratio
* Solid state light source
* Low power consumption & High efficiency
* Lead free product & RoHS Compliant
* LED emitted color is InGaN 470nm lamp with white diffused Lens
* It is in tape and

Applications

* Computer
* Communication
* Consumer
* Industrial 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic / black. 4. LED lamp is blue color with white diffused
