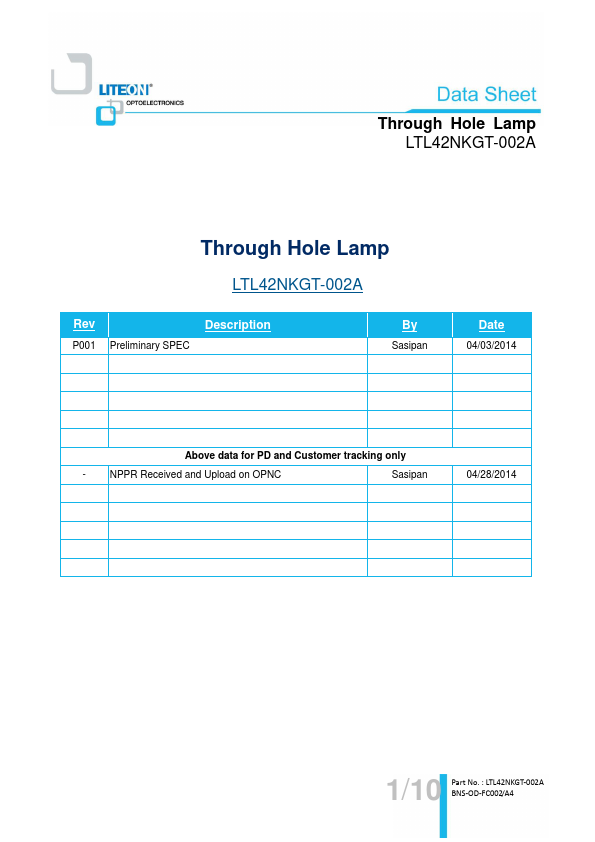

LTL42NKGT-002A
Description
P001 Preliminary SPEC
By
Sasipan
Date
04/03/2014
Above data for PD and Customer tracking only
- NPPR Received and Upload on OPNC
Sasipan
04/28/2014
1/10 Part No. : LTL42NKGT-002A BNS-OD-FC002/A4

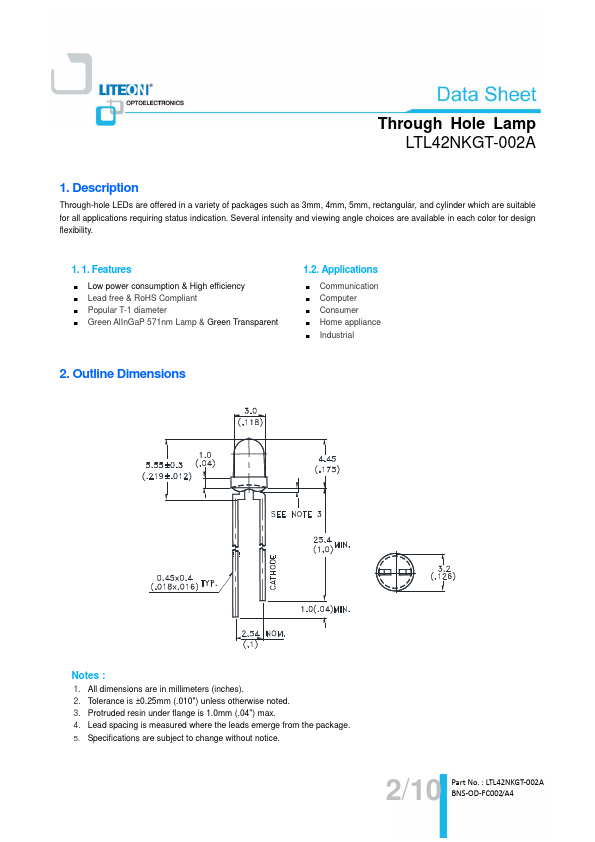

Through Hole Lamp LTL42NKGT-002A
1. Description
Through-hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- Lead free & Ro HS pliant
- Popular T-1 diameter
- Green Al In Ga P 571nm Lamp & Green Transparent
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
- Industrial
2. Outline Dimensions
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lead spacing is measured where the...
