LTS-3861JE

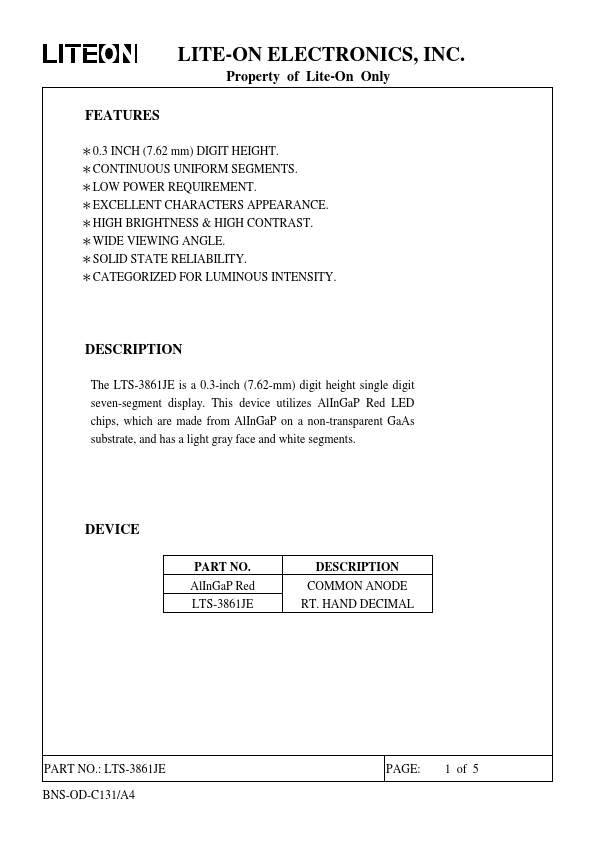

FEATURES
＊0.3 INCH (7.62 mm) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS. ＊LOW POWER REQUIREMENT. ＊EXCELLENT CHARACTERS APPEARANCE. ＊HIGH BRIGHTNESS & HIGH CONTRAST. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊CATEGORIZED FOR LUMINOUS INTENSITY.
DESCRIPTION
The LTS-3861JE is a 0.3-inch (7.62-mm) digit height single digit seven-segment display. This device utilizes Al In Ga P Red LED chips, which are made from Al In Ga P on a non-transparent Ga As substrate, and has a light gray face and white segments.
DEVICE
PART NO. Al In Ga P Red LTS-3861JE
DESCRIPTION
MON ANODE RT. HAND DECIMAL
PART NO.: LTS-3861JE BNS-OD-C131/A4
PAGE: 1 of 5
LITE-ON ELECTRONICS, INC.
Property of Lite-On Only

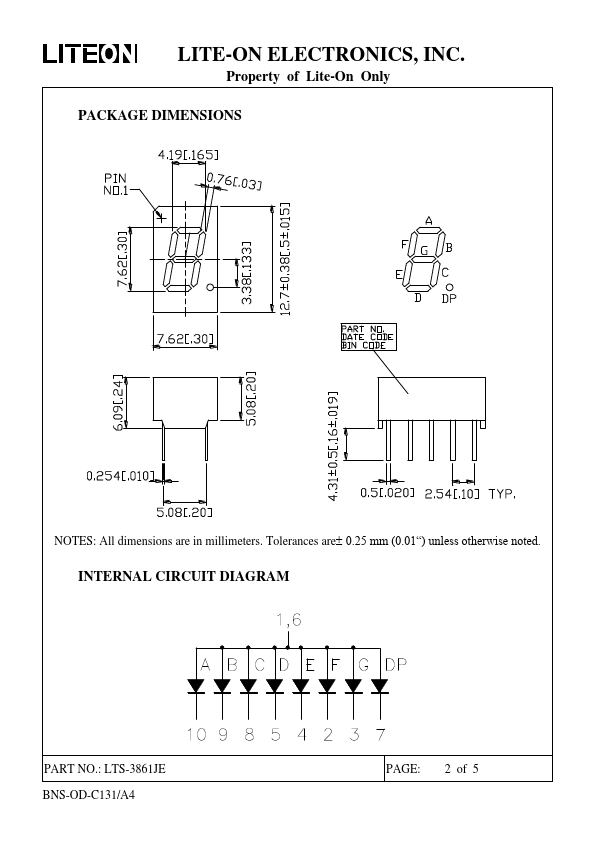

PACKAGE DIMENSIONS
NOTES: All dimensions are in millimeters. Tolerances are 0.25 mm (0.01“) unless otherwise noted.
INTERNAL CIRCUIT DIAGRAM
PART NO.: LTS-3861JE BNS-OD-C131/A4
PAGE: 2 of 5
LITE-ON ELECTRONICS, INC.
Property of Lite-On Only
PIN CONNECTION
No.
CONNECTION
MON ANODE
CATHODE...
