LTS-4301JG

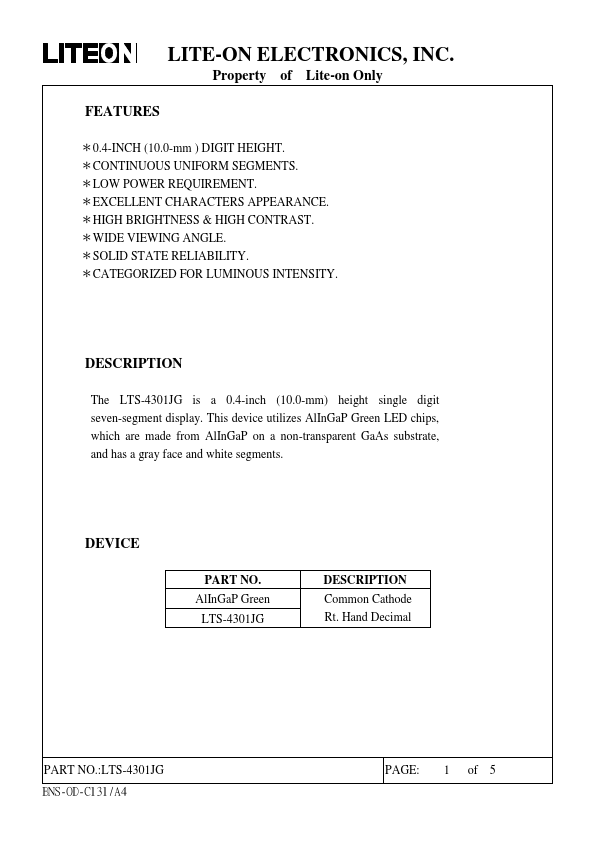

FEATURES
＊0.4-INCH (10.0-mm ) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS. ＊LOW POWER REQUIREMENT. ＊EXCELLENT CHARACTERS APPEARANCE. ＊HIGH BRIGHTNESS & HIGH CONTRAST. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊CATEGORIZED FOR LUMINOUS INTENSITY.
DESCRIPTION
The LTS-4301JG is a 0.4-inch (10.0-mm) height single digit seven-segment display. This device utilizes Al In Ga P Green LED chips, which are made from Al In Ga P on a non-transparent Ga As substrate, and has a gray face and white segments.
DEVICE
PART NO. Al In Ga P Green
DESCRIPTION mon Cathode Rt. Hand Decimal
PART NO.:LTS-4301JG BNS-OD-C131/A4
PAGE: 1 of 5
LITE-ON ELECTRONICS, INC.
Property of Lite-on Only
PACKAGE DIMENSIONS
NOTES: All dimensions are in millimeters. Tolerances are 0.25mm(0.01“) unless otherwise noted.
INTERNAL CIRCUIT DIAGRAM
PART NO.:LTS-4301JG BNS-OD-C131/A4
PAGE: 2 of 5
LITE-ON ELECTRONICS, INC.
Property of Lite-on Only
PIN CONNECTION
No
CONNECTION
ANODE G
ANODE F
MON...
