LTST-005GEBW SMD LED

LITEON

LTST-005GEBW Description

SMD LED Product Data Sheet LTST-005GEBW Spec No.:DS35-2019-0115 Effective Date: 01/26/2021 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Te.
SMD LEDs from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications.

LTST-005GEBW Features

* Meet ROHS
* Package in 8mm tape on 7" diameter reels
* EIA STD package
* I. C. compatible
* Compatible with automatic placement equipment
* Compatible with infrared reflow solder process

📥 Download Datasheet

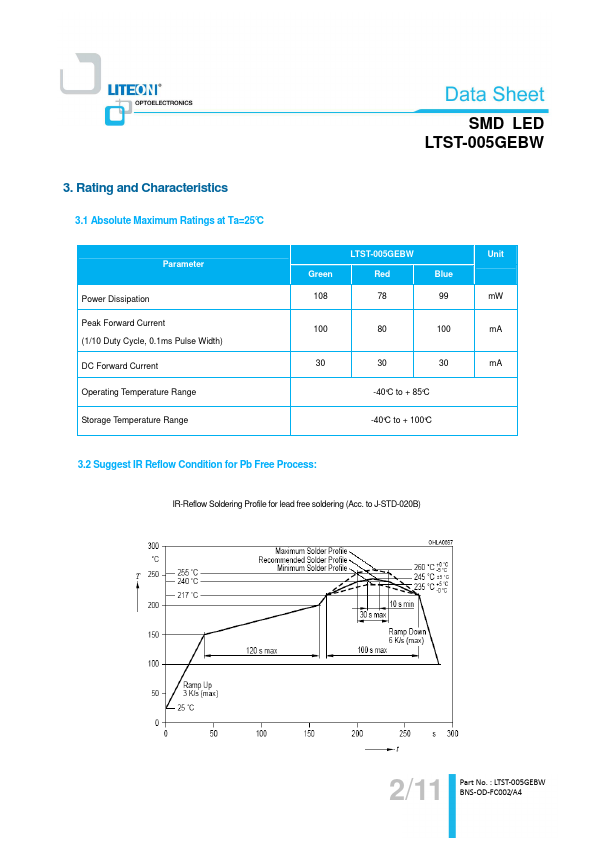

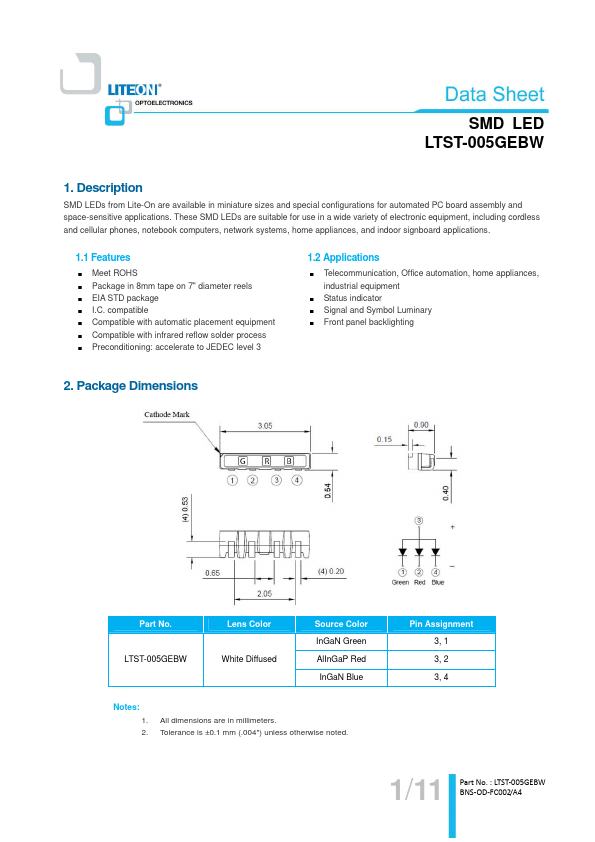

LTST-005GEBW Datasheet Preview — Preview of LTST-005GEBW PDF

Datasheet Details

Part number: LTST-005GEBW
Manufacturer: LITEON
File Size: 428.67 KB
Datasheet: LTST-005GEBW-LITEON.pdf
Description: SMD LED
