LTST-006GEBW - SMD LED

Datasheet Summary

Description

SMD LEDs from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications.

Features

  • Meet ROHS.
  • Package in 12mm tape on 7" diameter reels.
  • EIA STD package.
  • I. C. compatible.
  • Compatible with automatic placement equipment.
  • Compatible with infrared reflow solder process.
  • Preconditioning: accelerate to JEDEC level 3 1.2.

📥 Download Datasheet

Datasheet preview – LTST-006GEBW

Datasheet Details

Part number LTST-006GEBW
Manufacturer LITEON
File Size 502.38 KB
Description SMD LED
Datasheet download datasheet LTST-006GEBW Datasheet

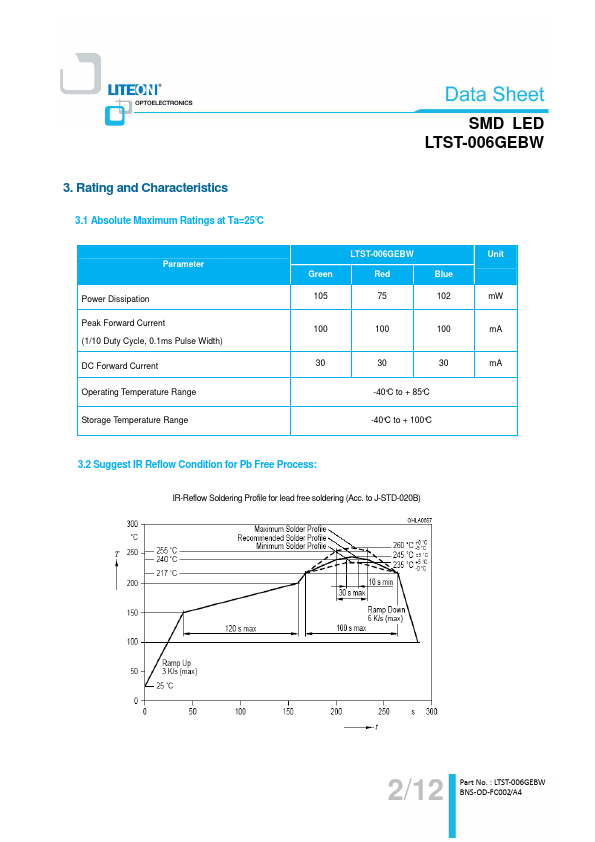

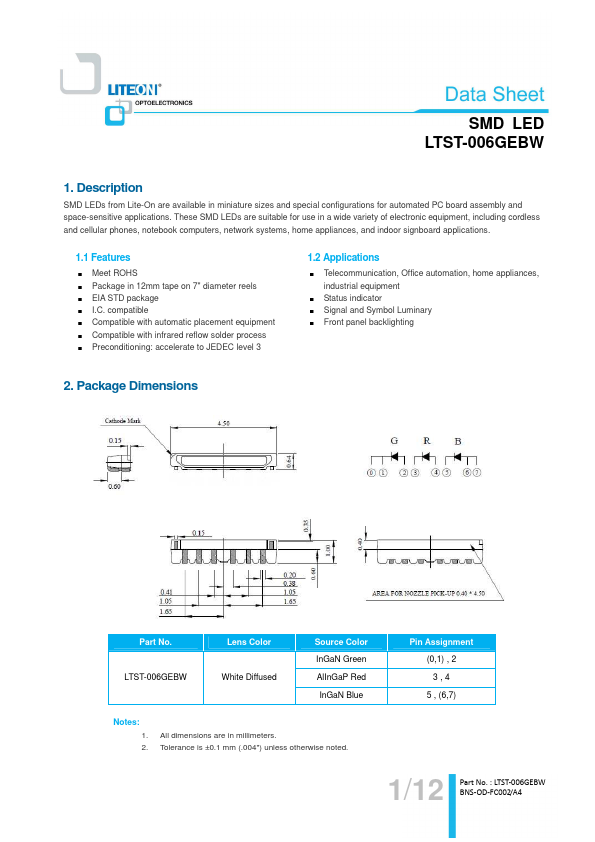

Additional preview pages of the LTST-006GEBW datasheet.

📁 Similar Datasheet

Other Datasheets by LITEON

Full PDF Text Transcription

Click to expand full text
SMD LED Product Data Sheet LTST-006GEBW Spec No. :DS35-2017-0141 Effective Date: 06/08/2023 Revision: C LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto SMD LED LTST-006GEBW 1. Description SMD LEDs from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LEDs are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook computers, network systems, home appliances, and indoor signboard applications. 1.
