LTST-008GEBW
Description
SMD LEDs from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LEDs are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook puters, network systems, home appliances, and indoor signboard applications.
1.1 Features
- Meet ROHS
- Package in 12mm tape on 7" diameter reels
- EIA STD package
- I.C. patible
- patible with automatic placement equipment
- patible with infrared reflow solder process
- Preconditioning: accelerate to JEDEC level 3
1.2 Applications
- Telemunication, Office automation, home appliances, industrial equipment
- Status indicator
- Signal and Symbol Luminary
- Front panel backlighting

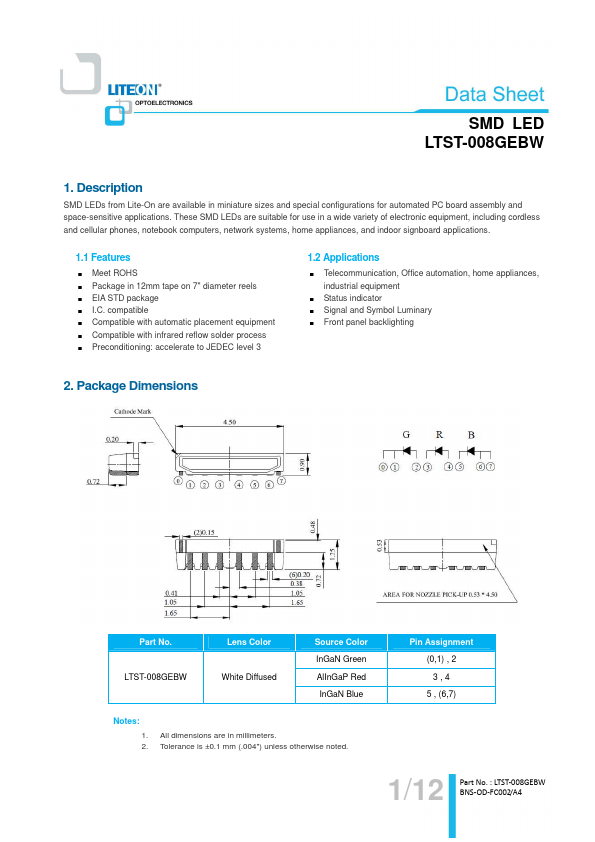

2. Package Dimensions
Part No. LTST-008GEBW
Lens Color White Diffused
Source Color In Ga N Green Al In Ga P Red In Ga N Blue
Notes: 1. 2.
All dimensions are in millimeters. Tolerance is ±0.1 mm (.004") unless otherwise...
