LTST-B32JEGBK-AT
Features
Meet ROHS Extra Thin (0.65Hmm) Full Color SMD Chip LED. Ultra Bright In Ga N / Al In Ga P Chip LED Package In 8mm Tape On 7" Diameter Reels. EIA STD Package. I.C. patible. patible With Automatic Placement Equipment. patible With Infrared Reflow Solder Process.
1.2 Applications
Telemunication, Office automation, home appliances, industrial equipment Keypad/Keyboard Backlighting Status indicator Microdisplays Signal and Symbol Luminary

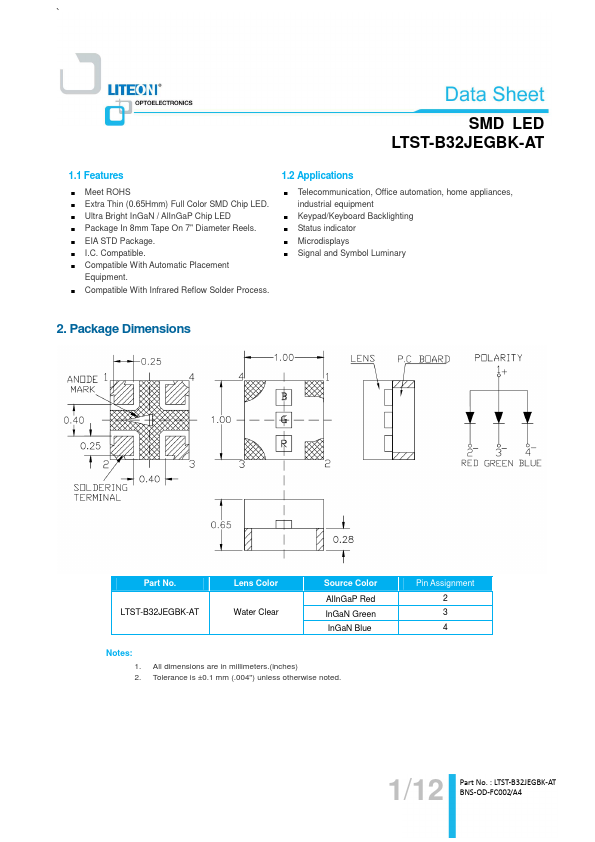

2. Package Dimensions
Part No. LTST-B32JEGBK-AT
Lens Color Water Clear
Source Color Al In Ga P Red In Ga N Green In Ga N Blue
Notes: 1. 2.
All dimensions are in millimeters.(inches) Tolerance is ±0.1 mm (.004") unless otherwise noted.
Pin Assignment 2 3 4
1/12 Part No. : LTST-B32JEGBK-AT BNS-OD-FC002/A4
`
SMD LED LTST-B32JEGBK-AT

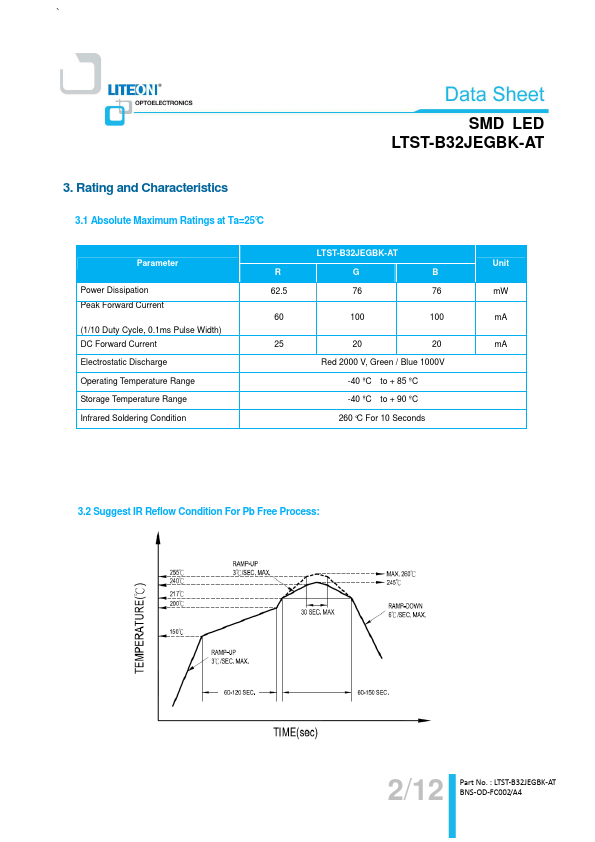

3. Rating and Characteristics
3.1 Absolute Maximum Ratings at Ta=25°C
Parameter
Unit
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
DC...
