LTST-C150KFKT - SMD LED

Product Overview

LITEON

📥 Download Datasheet

LTST-C150KFKT SMD LED by LITEON - Datasheet Preview — Datasheet preview – LTST-C150KFKT

Datasheet Details

Part number	LTST-C150KFKT
Manufacturer	LITEON
File Size	851.03 KB
Description	SMD LED
Datasheet	LTST-C150KFKT Datasheet

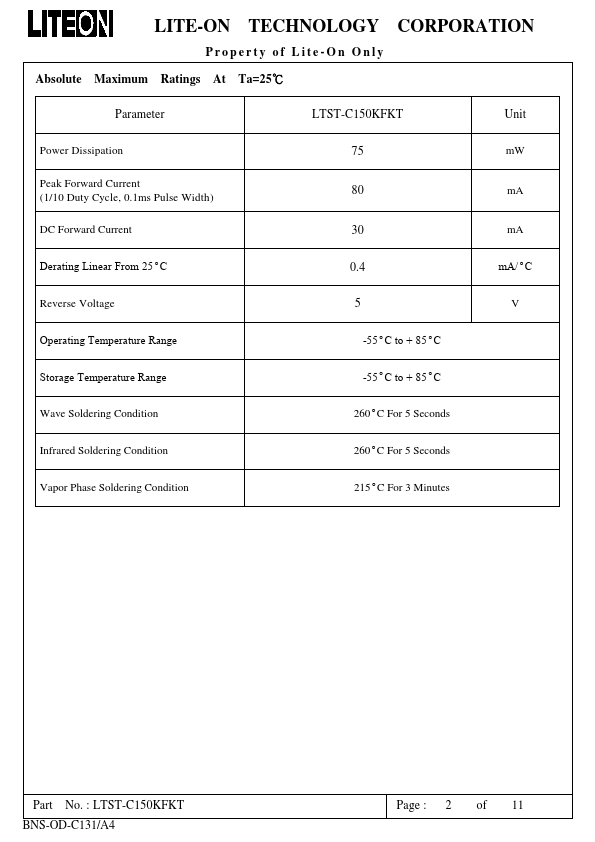

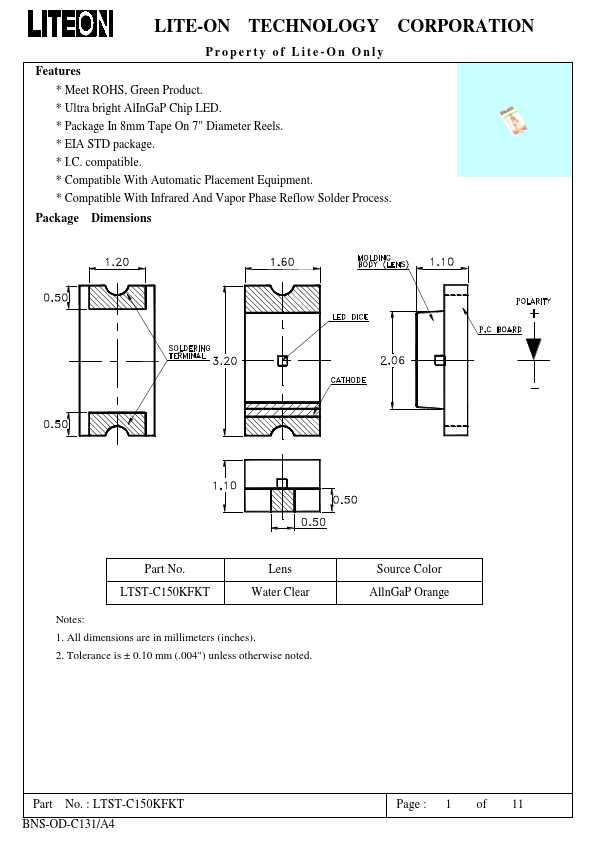

Additional preview pages of the LTST-C150KFKT datasheet.

Product details

Features

Meet ROHS, Green Product.
Ultra bright AlInGaP Chip LED.
Package In 8mm Tape On 7" Diameter Reels.
EIA STD package.
I. C. compatible.
Compatible With Automatic Placement Equipment.
Compatible With Infrared And Vapor Phase Reflow Solder Process. Package Dimensions Part No. LTST-C150KFKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted. Source Color AllnGaP Orange Part No. :.
