LTST-C150KGKT - SMD LED

Datasheet Summary

Features

  • Meet ROHS, Green Product.
  • Ultra bright AlInGaP Chip LED.
  • Package In 8mm Tape On 7" Diameter Reels.
  • EIA STD package.
  • I. C. compatible.
  • Compatible With Automatic Placement Equipment.

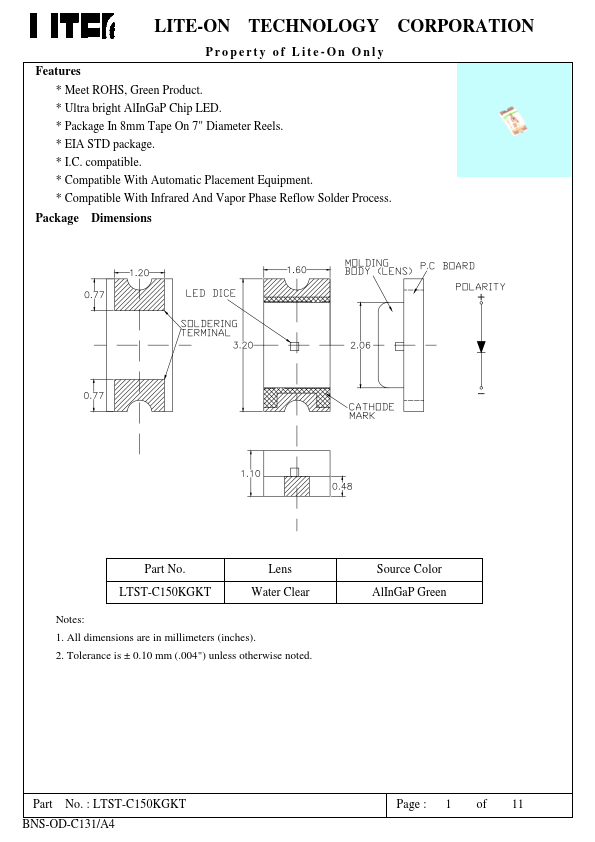

  • Compatible With Infrared And Vapor Phase Reflow Solder Process. Package Dimensions Part No. LTST-C150KGKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted. Source Color AlInGaP Green Part No. :.

📥 Download Datasheet

Datasheet preview – LTST-C150KGKT

Datasheet Details

Part number LTST-C150KGKT
Manufacturer LITEON
File Size 535.30 KB
Description SMD LED
Datasheet download datasheet LTST-C150KGKT Datasheet
Additional preview pages of the LTST-C150KGKT datasheet.

📁 Similar Datasheet

Other Datasheets by LITEON

Full PDF Text Transcription

Click to expand full text
SMD LED Product Data Sheet LTST-C150KGKT Spec No. :DS22-2000-072 Effective Date: 08/31/2022 Revision: I LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON TECHNOLOGY CORPORATION Property of Lite-On Only Features * Meet ROHS, Green Product. * Ultra bright AlInGaP Chip LED. * Package In 8mm Tape On 7" Diameter Reels. * EIA STD package. * I.C. compatible. * Compatible With Automatic Placement Equipment. * Compatible With Infrared And Vapor Phase Reflow Solder Process. Package Dimensions Part No. LTST-C150KGKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.
