LTST-C19FD1WT - SMD LED

LITEON

LTST-C19FD1WT Description

SMD LED Product Data Sheet LTST-C19FD1WT Spec No.: DS22-2001-076 Effective Date: 07/21/2016 Revision: H LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Te.
SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive application.

LTST-C19FD1WT Features

* Meet ROHS
* Extra Thin (0.55Hmm) Full Color SMD Chip LED.
* Ultra InGaN /AlInGaP Chip LED
* Package In 8mm Tape On 7" Diameter Reels.
* EIA STD Package.
* I. C. Compatible.
* Compatible With Automatic Placement Equipment.
* Compatible With Infrared Reflow Solder Proc

📥 Download Datasheet

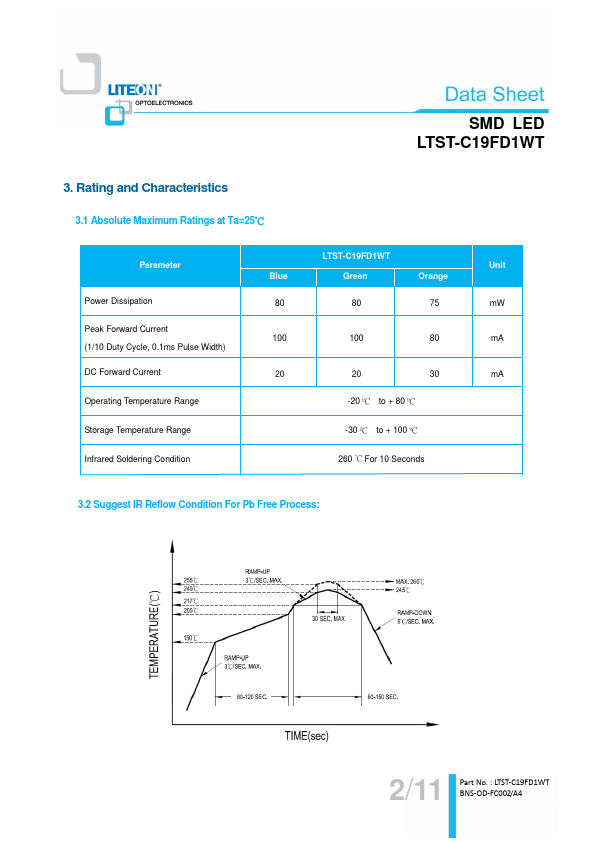

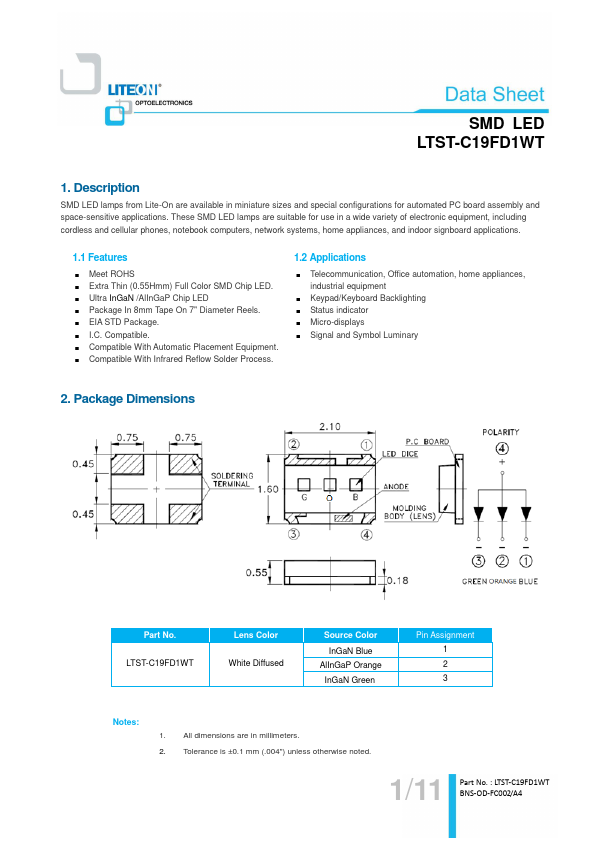

LTST-C19FD1WT Datasheet Preview — Preview of LTST-C19FD1WT PDF

Datasheet Details

Part number: LTST-C19FD1WT
Manufacturer: LITEON
File Size: 717.75 KB
Datasheet: LTST-C19FD1WT-LITEON.pdf
Description: SMD LED
