LTST-C19GD2WT

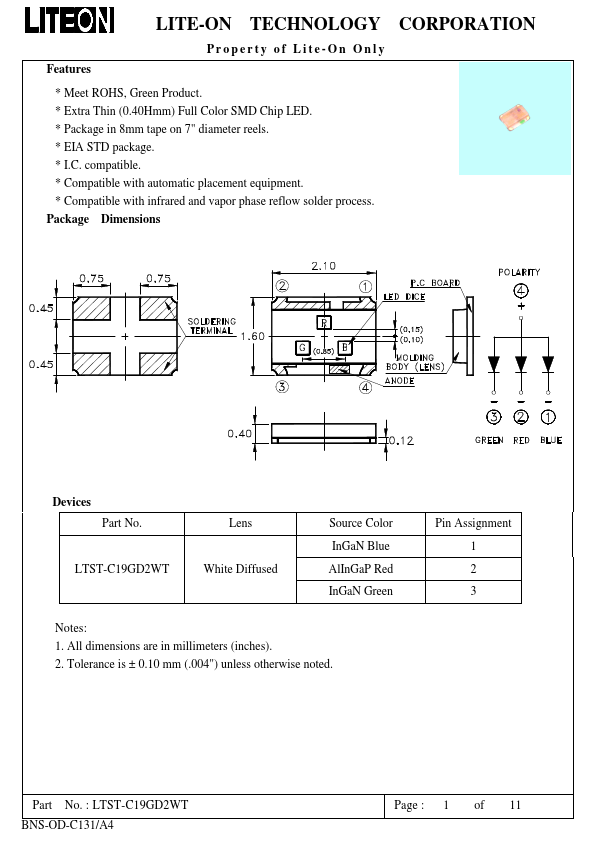

Features
Property of Lite-On Only
- Meet ROHS, Green Product.
- Extra Thin (0.40Hmm) Full Color SMD Chip LED.
- Package in 8mm tape on 7" diameter reels.
- EIA STD package.
- I.C. patible.
- patible with automatic placement equipment.
- patible with infrared and vapor phase reflow solder process. Package Dimensions
Devices
Part No.
Lens
White Diffused
Source Color In Ga N Blue Al In Ga P Red In Ga N Green
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Pin Assignment 1 2 3
Part No. : LTST-C19GD2WT BNS-OD-C131/A4
Page : 1 of 11
LITE-ON TECHNOLOGY CORPORATION

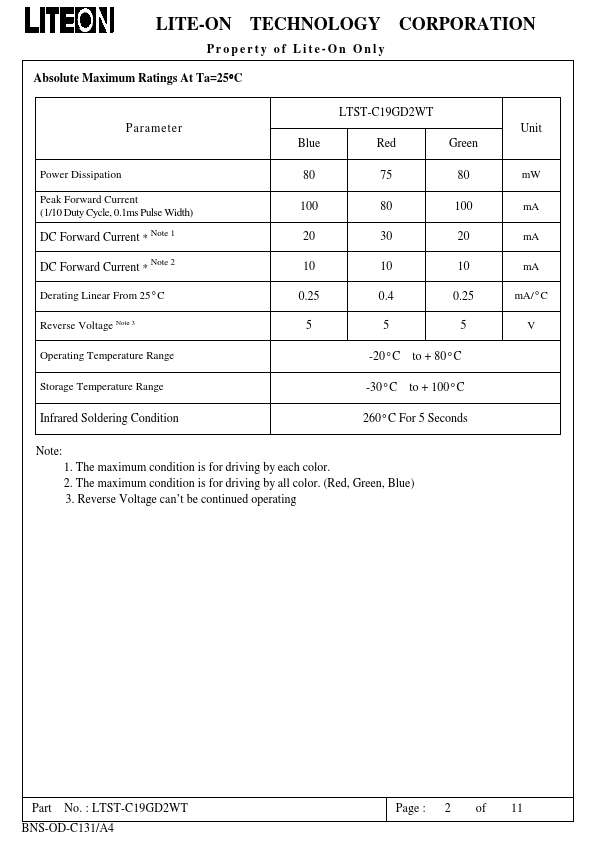

Property of Lite-On Only Absolute Maximum Ratings At Ta=25°C
Parameter
Unit
Blue
Red
Green
Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) DC Forward Current
- Note 1 DC Forward Current
- Note 2 Derating Linear From 25°C
Reverse Voltage Note 3
Operating Temperature Range
80 m...
