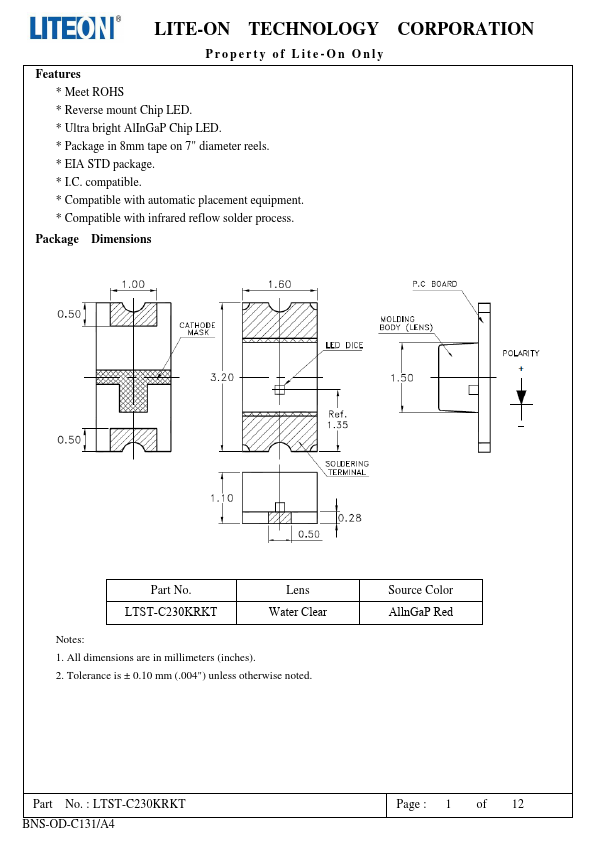

LTST-C230KRKT
Features
- Meet ROHS
- Reverse mount Chip LED.
- Ultra bright Al In Ga P Chip LED.
- Package in 8mm tape on 7" diameter reels.
- EIA STD package.
- I.C. patible.
- patible with automatic placement equipment.
- patible with infrared reflow solder process. Package Dimensions
Part No. LTST-C230KRKT
Lens Water Clear
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.10 mm (.004") unless otherwise noted.
Source Color Alln Ga P Red
Part No. : LTST-C230KRKT BNS-OD-C131/A4
Page : 1 of 12
LITE-ON TECHNOLOGY CORPORATION

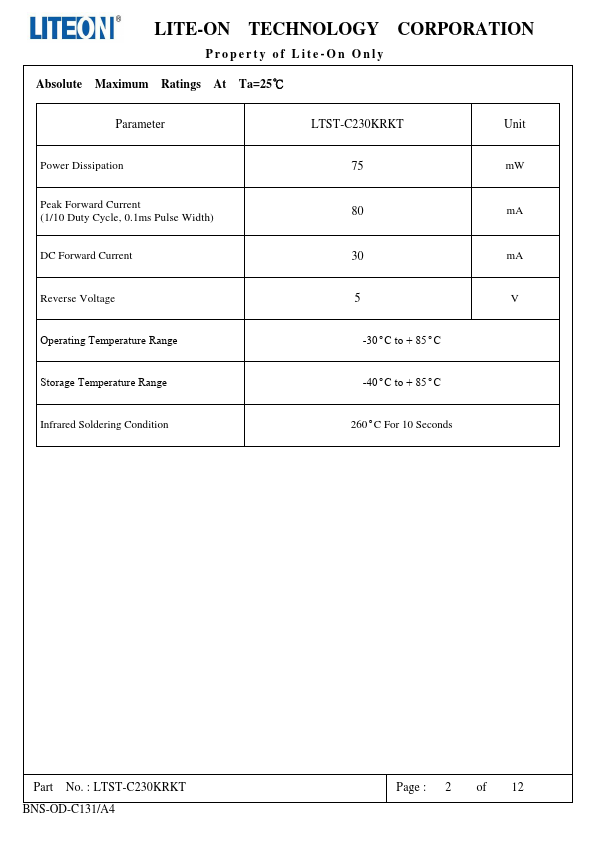

Property of Lite-On Only Absolute Maximum Ratings At Ta=25℃
Parameter
Unit
Power Dissipation
75 m W
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
80 m A
DC Forward Current
30 m A
Reverse Voltage
Operating Temperature Range
-30°C to + 85°C
Storage Temperature Range
-40°C to + 85°C
Infrared Soldering Condition
260°C For 10 Seconds
Part No. : LTST-C230KRKT BNS-OD-C131/A4
Page : 2 of 12
