LTST-C230KSKT - SMD LED

LITEON

📥 Download Datasheet

LTST-C230KSKT Datasheet Preview — Preview of LTST-C230KSKT PDF

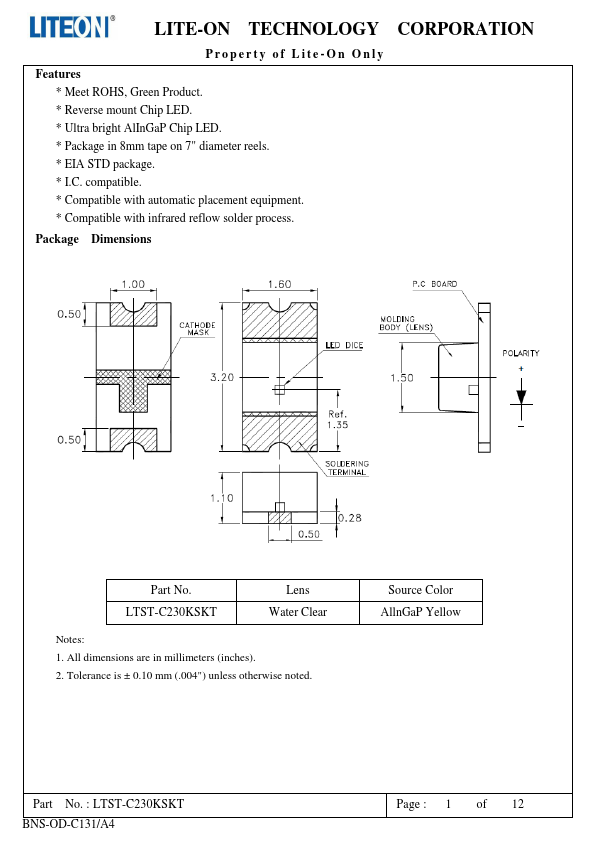

datasheet Preview Page 2

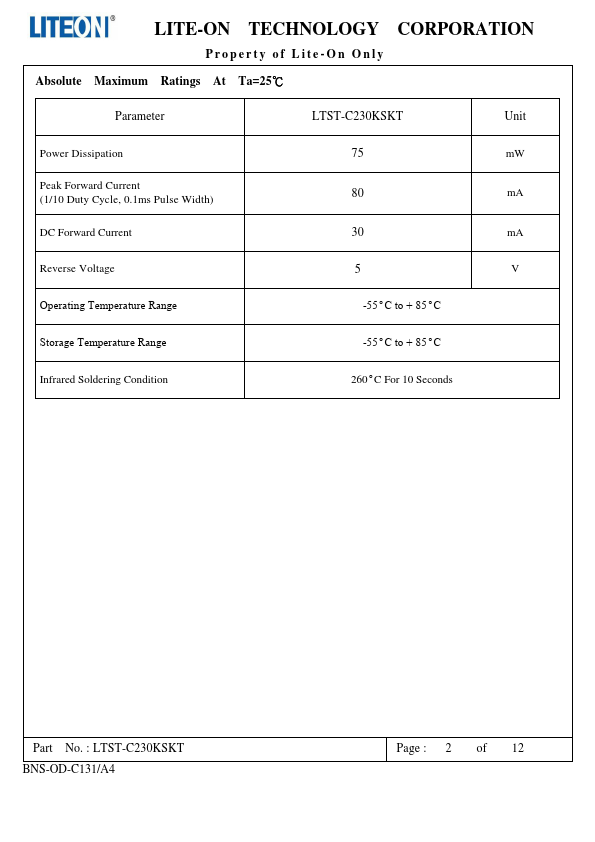

datasheet Preview Page 3

Datasheet Details

Part number	LTST-C230KSKT
Manufacturer	LITEON
File Size	726.14 KB
Description	SMD LED
Datasheet	LTST-C230KSKT-LITEON.pdf

LTST-C230KSKT Product details

Features

Meet ROHS, Green Product.
Reverse mount Chip LED.
Ultra bright AlInGaP Chip LED.
Package in 8mm tape on 7" diameter reels.
EIA STD package.
I. C. compatible.
Compatible with automatic placement equipment.
Compatible with infrared reflow solder process. Package Dimensions Part No. LTST-C230KSKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.10 mm (.004") unless otherwise noted. Source Color AllnGaP Yello.
