LTST-C281KGKT - SMD LED

LITEON

📥 Download Datasheet

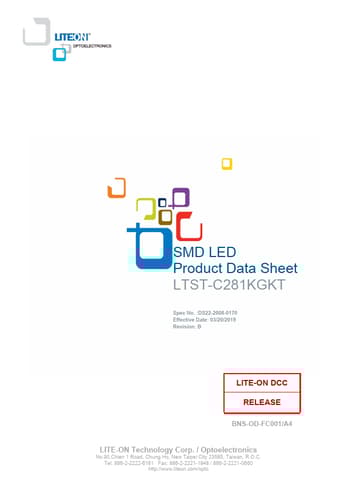

LTST-C281KGKT Datasheet Preview — Preview of LTST-C281KGKT PDF

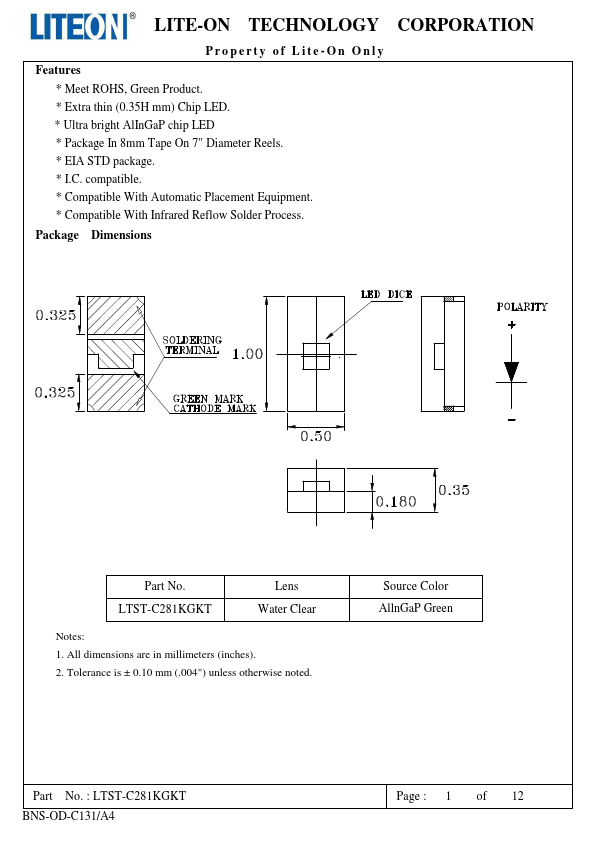

datasheet Preview Page 2

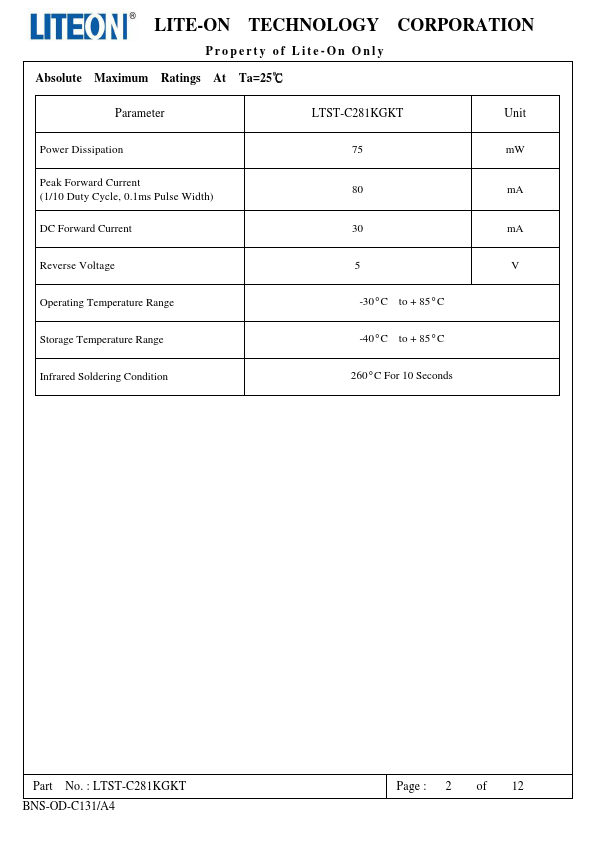

datasheet Preview Page 3

Datasheet Details

Part number	LTST-C281KGKT
Manufacturer	LITEON
File Size	452.42 KB
Description	SMD LED
Datasheet	LTST-C281KGKT-LITEON.pdf

LTST-C281KGKT Product details

Features

Meet ROHS, Green Product.
Extra thin (0.35H mm) Chip LED.
Ultra bright AlInGaP chip LED.
Package In 8mm Tape On 7" Diameter Reels.
EIA STD package.
I. C. compatible.
Compatible With Automatic Placement Equipment.
Compatible With Infrared Reflow Solder Process. Package Dimensions Part No. LTST-C281KGKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted. Source Color AllnG.
