LTST-C295KGKRKT

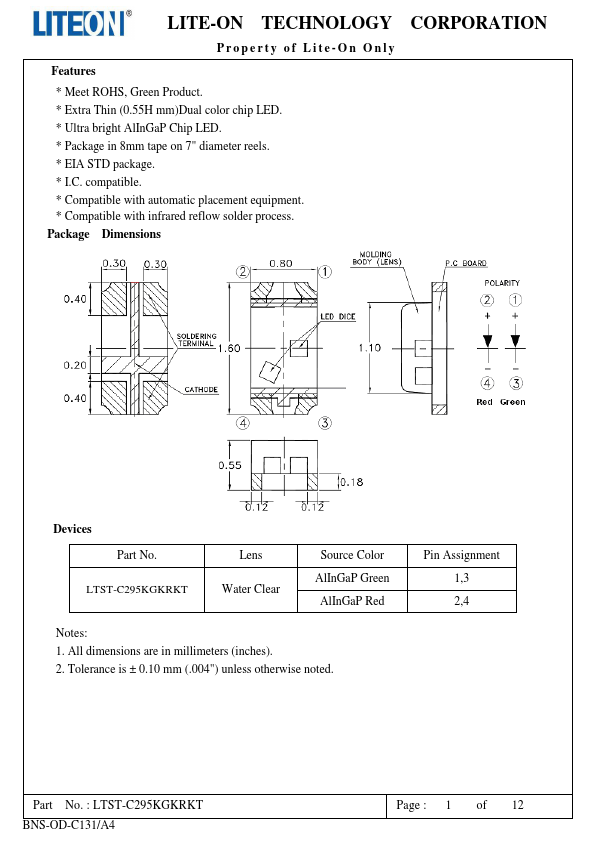

Features
- Meet ROHS, Green Product.
- Extra Thin (0.55H mm)Dual color chip LED.
- Ultra bright Al In Ga P Chip LED.
- Package in 8mm tape on 7" diameter reels.
- EIA STD package.
- I.C. patible.
- patible with automatic placement equipment.
- patible with infrared reflow solder process. Package Dimensions
Devices
Part No.
Lens Water Clear
Source Color Al In Ga P Green Al In Ga P Red
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Pin Assignment 1,3 2,4
Part No. : LTST-C295KGKRKT BNS-OD-C131/A4
Page : 1 of 12
LITE-ON TECHNOLOGY CORPORATION

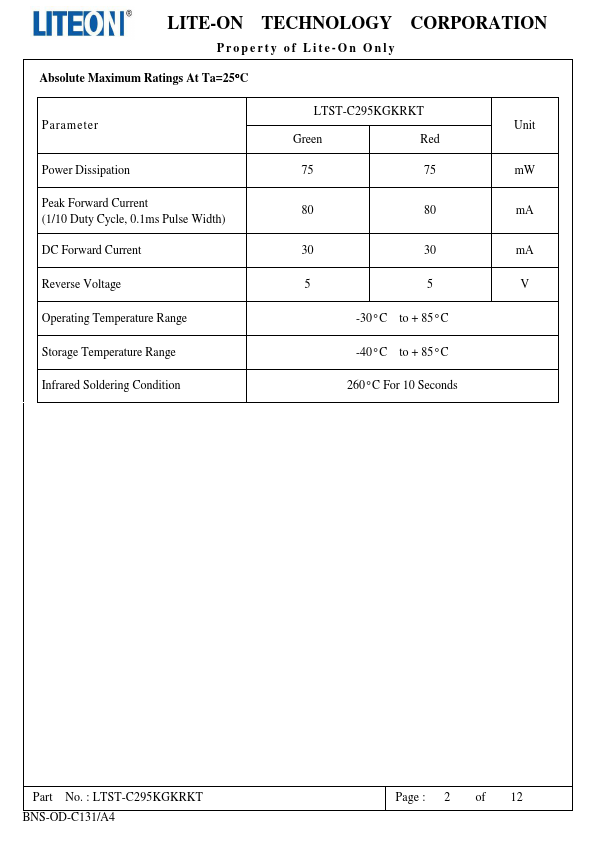

Property of Lite-On Only Absolute Maximum Ratings At Ta=25°C
Parameter Power Dissipation
Unit
Green
Red
75 m W
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
DC Forward Current
80 m A
30 m A
Reverse Voltage
Operating Temperature Range
-30°C to + 85°C
Storage Temperature Range
-40°C to + 85°C
Infrared...
