LTST-C930KDKT
Description
SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LED lamps are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook puters, network systems, home appliances, and indoor signboard applications.
1.1 Features
- Meet Ro Hs
- Dome Lens Chip LED
- Ultra Bright Al In Ga P Chip LED.
- Package in 8mm tape on 7" diameter reels.
- EIA STD package
- I.C. patible
- patible with automatic placement equipment
- patible with infrared reflow solder process
1.2 Applications
- Telemunication, Office automation, home appliances, industrial equipment
- Keypad/Keyboard Backlighting
- Status indicator
- Micro-displays
- Signal and Symbol Luminary

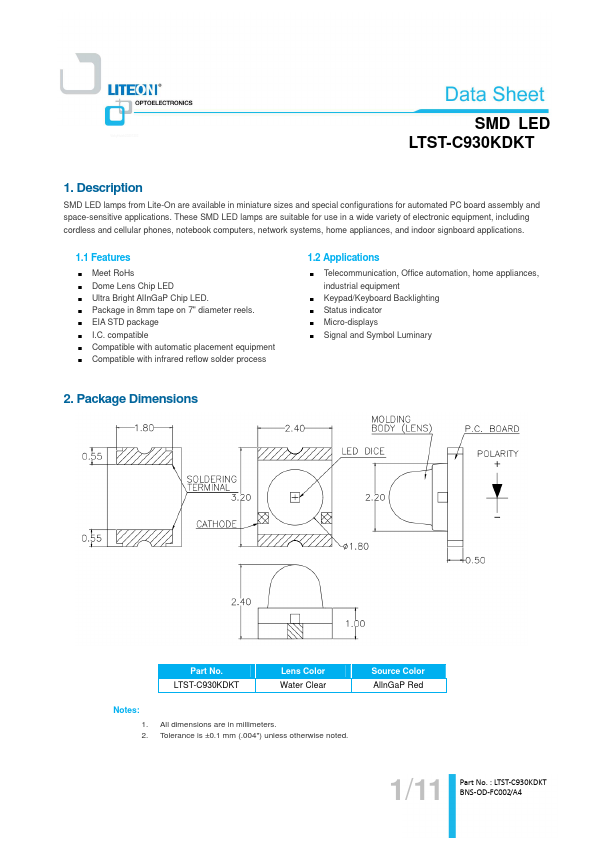

2. Package Dimensions
Part No. LTST-C930KDKT
Lens Color Water Clear
Notes: 1. 2.
All dimensions are in millimeters. Tolerance is ±0.1 mm (.004") unless otherwise noted.
Source Color...
