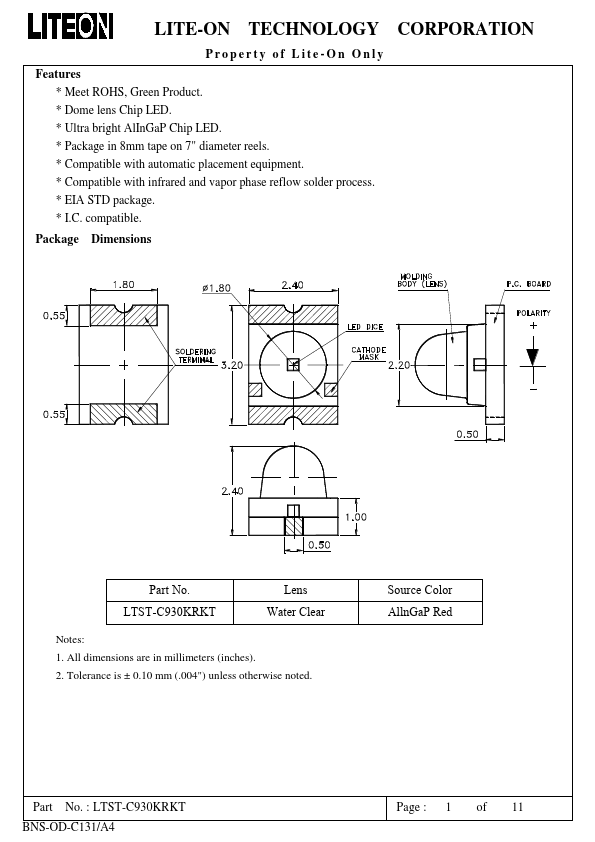

LTST-C930KRKT
Features
- Meet ROHS, Green Product.
- Dome lens Chip LED.
- Ultra bright Al In Ga P Chip LED.
- Package in 8mm tape on 7" diameter reels.
- patible with automatic placement equipment.
- patible with infrared and vapor phase reflow solder process.
- EIA STD package.
- I.C. patible. Package Dimensions
Part No. LTST-C930KRKT
Lens Water Clear
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Source Color Alln Ga P Red
Part No. : LTST-C930KRKT BNS-OD-C131/A4
Page : 1 of 11
LITE-ON TECHNOLOGY CORPORATION

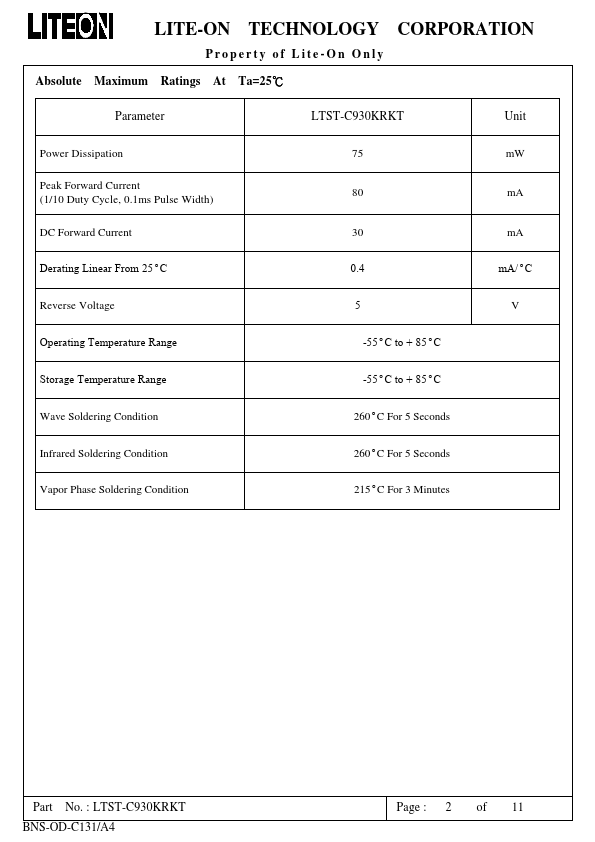

Property of Lite-On Only Absolute Maximum Ratings At Ta=25℃
Parameter
Unit
Power Dissipation
75 m W
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
80 m A
DC Forward Current
30 m A
Derating Linear From 25°C
0.4 m A/°C
Reverse Voltage
Operating Temperature Range
-55°C to + 85°C
Storage Temperature Range
-55°C to + 85°C
Wave Soldering Condition
260°C For 5 Seconds
Infrared...
