LTST-E563CEGBW - SMD LED

Name: LTST-E563CEGBW
SKU: LTST-E563CEGBW-1586871

LITEON

📥 Download Datasheet

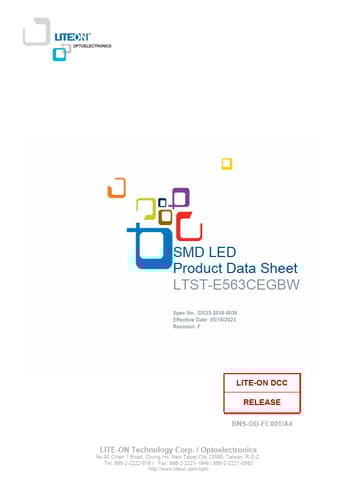

LTST-E563CEGBW Datasheet Preview — Preview of LTST-E563CEGBW PDF

Datasheet Details

Part number	LTST-E563CEGBW
Manufacturer	LITEON
File Size	783.60 KB
Description	SMD LED
Datasheet	LTST-E563CEGBW-LITEON.pdf

LTST-E563CEGBW Product details

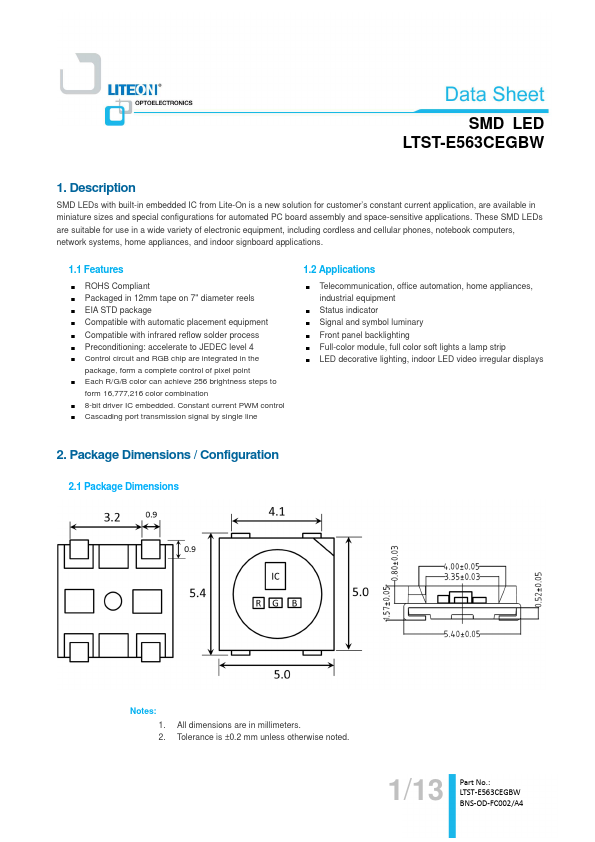

Description

SMD LEDs with built-in embedded IC from Lite-On is a new solution for customer’s constant current application, are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications.

Features

ROHS Compliant.
Packaged in 12mm tape on 7" diameter reels.
EIA STD package.
Compatible with automatic placement equipment.
Compatible with infrared reflow solder process.
Preconditioning: accelerate to JEDEC level 4.

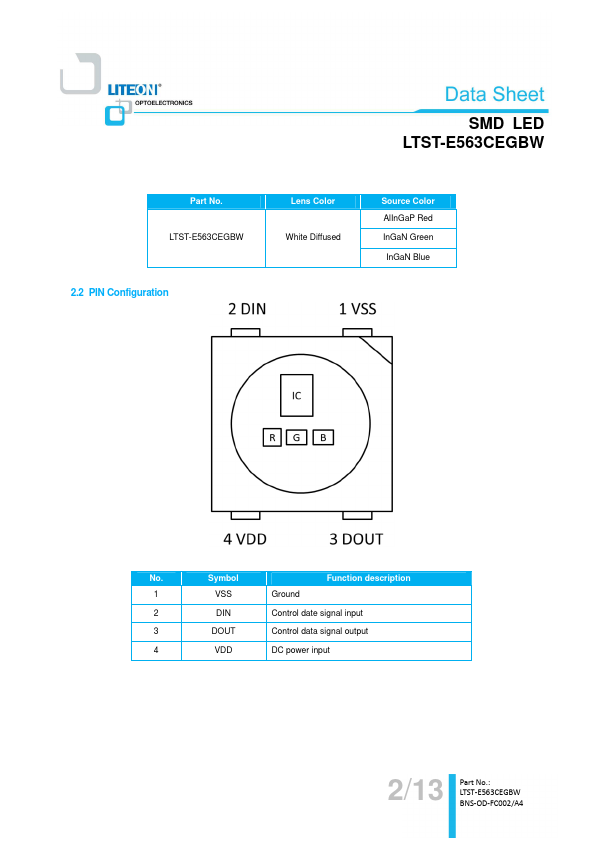

Control circuit and RGB chip are integrated in the package, form a complete control of pixel point.
Each R/G/B color can achieve 256 brightness steps to form 16,777,216 color combination.
8-bit driver IC embedded. Constant current PWM c.
