LTST-M670GKT
Features
- Package in 8mm tape on 7" diameter reels.
- patible with automatic placement equipment.
- patible with infrared and reflow solder process.
- EIA STD package.
- I.C. patible.
- Lead-Free package (According to Ro HS).

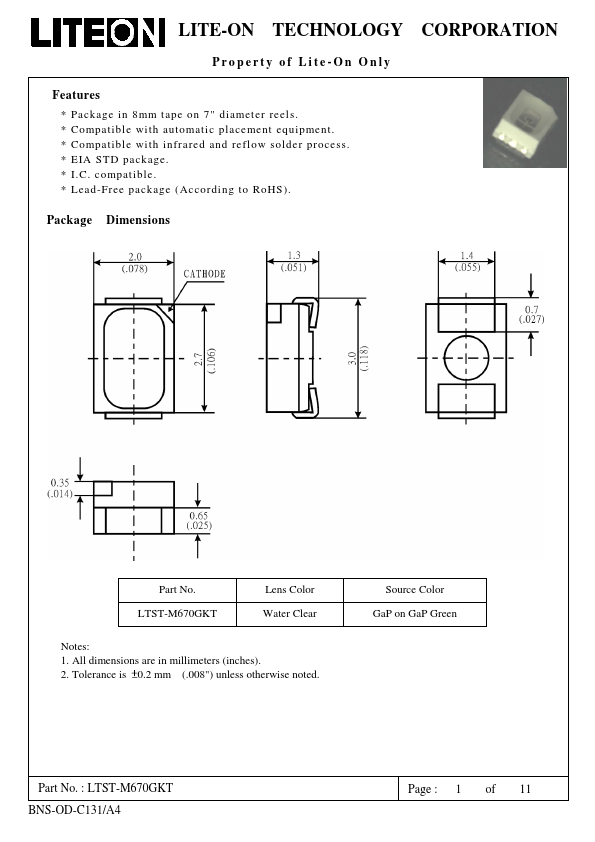

Package Dimensions
Part No. LTST-M670GKT
Lens Color Water Clear
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.2 mm (.008") unless otherwise noted.
Source Color Ga P on Ga P Green
Part No. : LTST-M670GKT BNS-OD-C131/A4
Page : 1 of 11
LITE-ON TECHNOLOGY CORPORATION

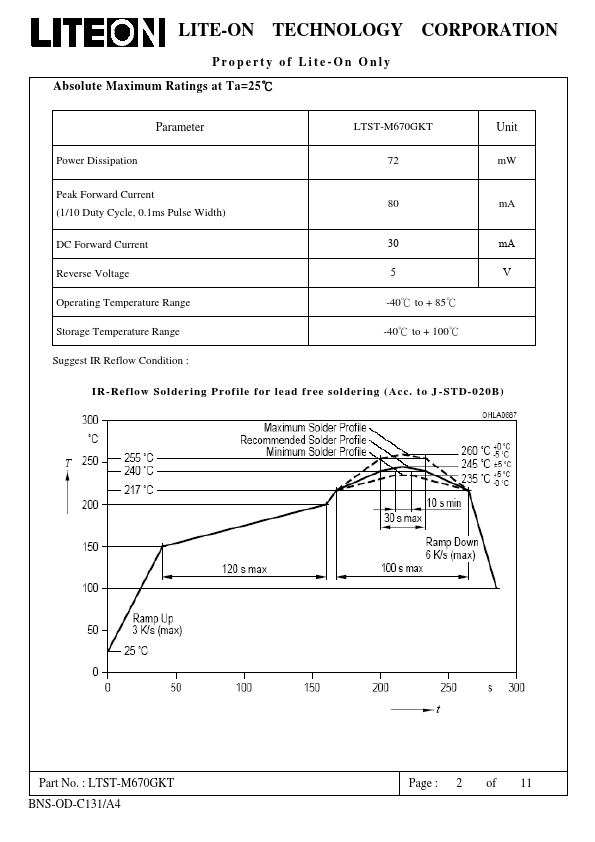

Property of Lite-On Only Absolute Maximum Ratings at Ta=25℃
Parameter
Unit
Power Dissipation
72 m W
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
80 m A
DC Forward Current Reverse Voltage Operating Temperature Range Storage Temperature Range
30 m A
-40℃ to + 85℃
-40℃ to + 100℃
Suggest IR Reflow Condition :
IR-Reflow Soldering Profile for lead free soldering (Acc. to J-STD-020B)
Part No. : LTST-M670GKT BNS-OD-C131/A4
Page : 2 of...
