LTST-S220KEKT

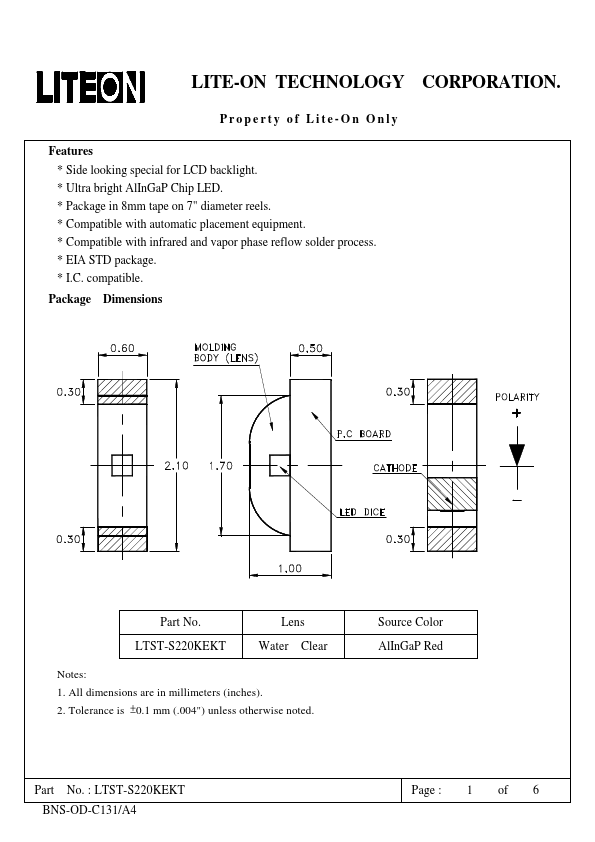

Features
- Side looking special for LCD backlight.
- Ultra bright Al In Ga P Chip LED.
- Package in 8mm tape on 7" diameter reels.
- patible with automatic placement equipment.
- patible with infrared and vapor phase reflow solder process.
- EIA STD package.
- I.C. patible.
Package Dimensions
Part No. LTST-S220KEKT
Lens Water Clear
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1 mm (.004") unless otherwise noted.
Source Color Al In Ga P Red
Part No. : LTST-S220KEKT BNS-OD-C131/A4
Page : 1 of 6
LITE-ON TECHNOLOGY CORPORATION.
Property of Lite-On Only

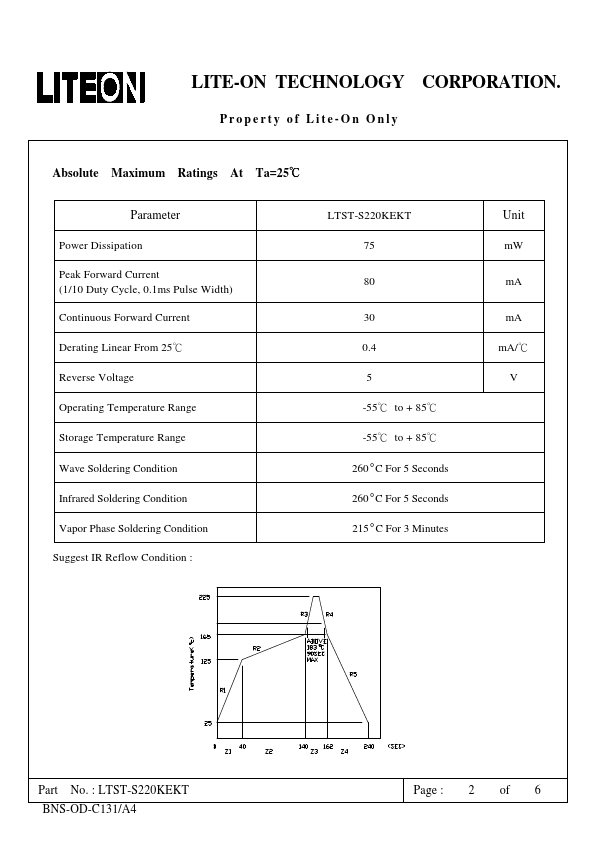

Absolute Maximum Ratings At Ta=25℃
Parameter Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) Continuous Forward Current Derating Linear From 25℃ Reverse Voltage Operating Temperature Range Storage Temperature Range Wave Soldering Condition Infrared Soldering Condition Vapor Phase Soldering Condition Suggest IR Reflow Condition :
LTST-S220KEKT 75 80 30 0.4 5 -55℃ to + 85℃ -55℃ to +...
