LTST-S220KGKT Datasheet - LITEON

LTST-S220KGKT, SMD LED

SMD LED Product Data Sheet LTST-S220KGKT Spec No.: DS22-2000-075 Effective Date: 12/11/2013 Revision: D LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Te.

datasheet Preview Page 1 from Datasheet4u.com

LTST-S220KGKT-LITEON.pdf

LTST-S220KGKT Datasheet Preview — Preview of LTST-S220KGKT PDF

Datasheet Details

Part number:

LTST-S220KGKT

Manufacturer:

LITEON

File Size:

664.24 KB

Description:

SMD LED

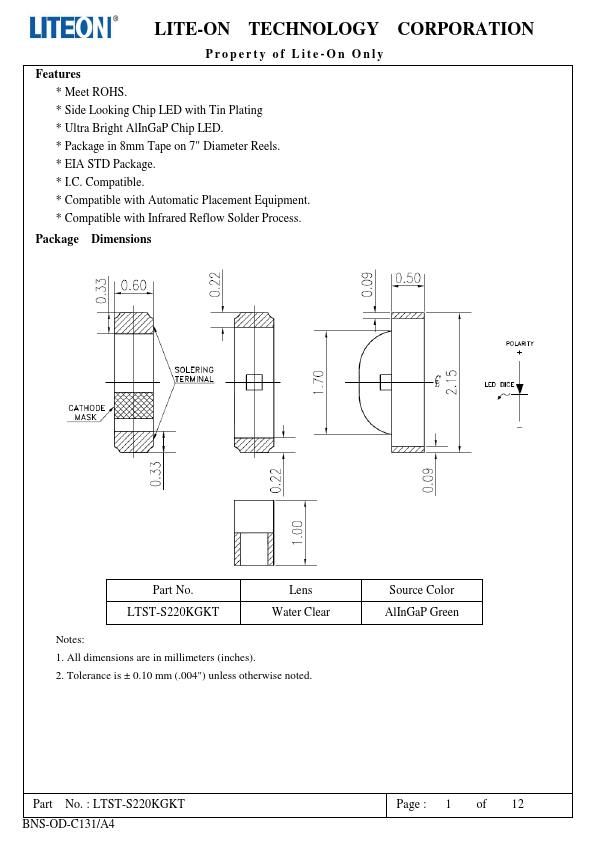

Features

* Meet ROHS.
* Side Looking Chip LED with Tin Plating
* Ultra Bright AlInGaP Chip LED.
* Package in 8mm Tape on 7" Diameter Reels.
* EIA STD Package.
* I. C. Compatible.
* Compatible with Automatic Placement Equipment.
* Compatible with Infrared Reflow Solder Process.

Applications

* . Consult Liteon’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such a
